SFH 303 FA-3/4
SENSOR PHOTO 990NM TOP VIEW RADManufacturer: ams-OSRAM USA INC.
Categories: Phototransistors
Quality Control: Learn More

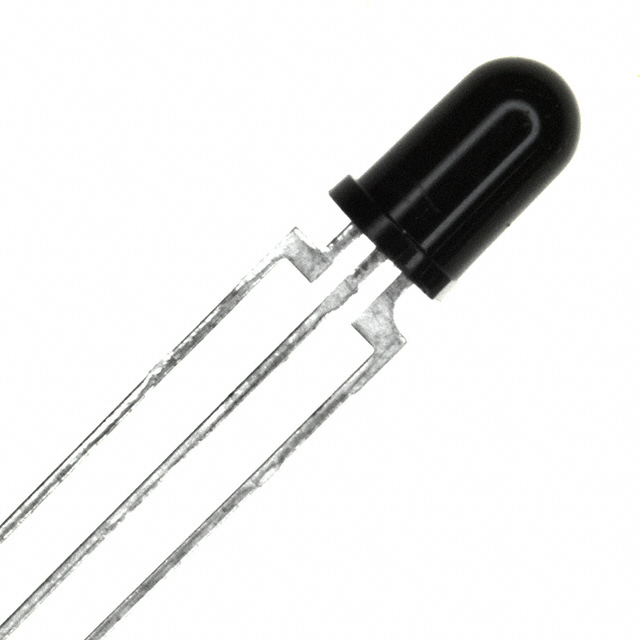

The ams-OSRAM USA INC. SFH-303-FA-3-4 is a top-view phototransistor designed for precise light detection at 990nm. This radial-leaded component, packaged in bulk, features a maximum collector current (Ic) of 50 mA and a low dark current (Id) of 50 nA. With a maximum collector emitter breakdown voltage of 35 V and a power dissipation rating of 200 mW, it operates reliably within a temperature range of -40°C to 100°C. The SFH-303-FA-3-4 offers a viewing angle of 40°, making it suitable for a variety of applications including industrial automation, medical equipment, and consumer electronics where accurate optical sensing is critical. Its through-hole mounting facilitates integration into existing PCB designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial - 3 Leads |
| Wavelength | 990nm |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C |
| Viewing Angle | 40° |
| Current - Dark (Id) (Max) | 50 nA |
| Current - Collector (Ic) (Max) | 50 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 200 mW |
