SFH 303 FA-3
SENSOR PHOTO 990NM TOP T1 3/4Manufacturer: ams-OSRAM USA INC.
Categories: Phototransistors
Quality Control: Learn More

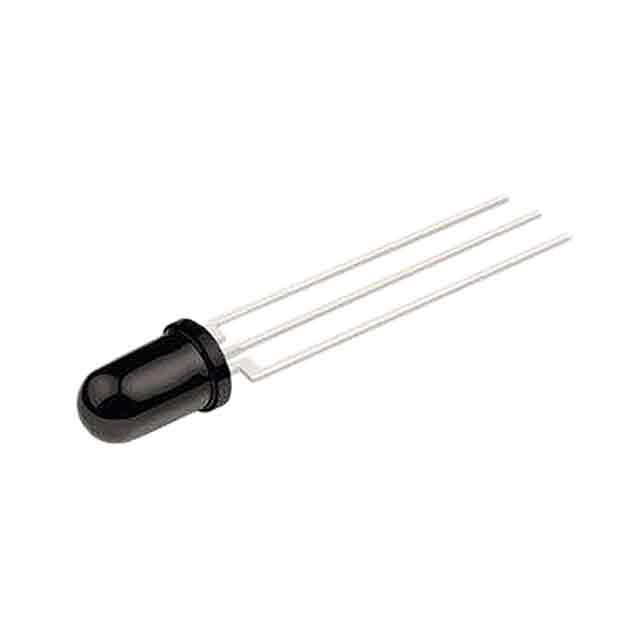

ams-OSRAM USA INC. SFH-303-FA-3 is a through-hole phototransistor featuring a 990nm peak sensitivity. This component is housed in a T 1 3/4 package with a top-view orientation and a 40° viewing angle. It offers a maximum collector current (Ic) of 50 mA and a low dark current (Id) of 50 nA. The device boasts a collector-emitter breakdown voltage of 35 V and a maximum power dissipation of 200 mW. Operating across a temperature range of -40°C to 100°C, the SFH-303-FA-3 is suitable for applications in industrial automation, medical sensing, and optical control systems where precise light detection at specific wavelengths is critical. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | T 1 3/4 |
| Wavelength | 990nm |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C |
| Viewing Angle | 40° |
| Current - Dark (Id) (Max) | 50 nA |
| Current - Collector (Ic) (Max) | 50 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 200 mW |
