SFH 3015 FA
SENSOR PHOTO 870NM SID VIEW 1206Manufacturer: ams-OSRAM USA INC.
Categories: Phototransistors
Quality Control: Learn More

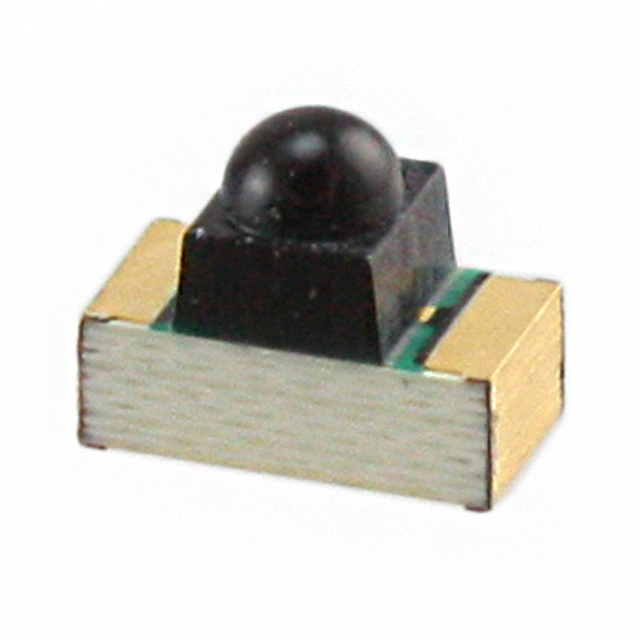

ams-OSRAM USA INC. SFH-3015-FA is a side-view phototransistor designed for surface mount applications. This component operates at a peak wavelength of 870nm, with a collector-emitter breakdown voltage of 30V and a maximum collector current of 15mA. The SFH-3015-FA features a narrow viewing angle of 26° and a low dark current of 50nA, ensuring precise light detection. It is supplied in a 1206 (3216 Metric) package and delivered on tape and reel. The operating temperature range is -25°C to 85°C. This phototransistor is suitable for applications in industrial automation, consumer electronics, and medical devices where accurate optical sensing is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Wavelength | 870nm |
| Mounting Type | Surface Mount |
| Orientation | Side View |
| Operating Temperature | -25°C ~ 85°C |
| Viewing Angle | 26° |
| Current - Dark (Id) (Max) | 50 nA |
| Current - Collector (Ic) (Max) | 15 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
Request a Quote
