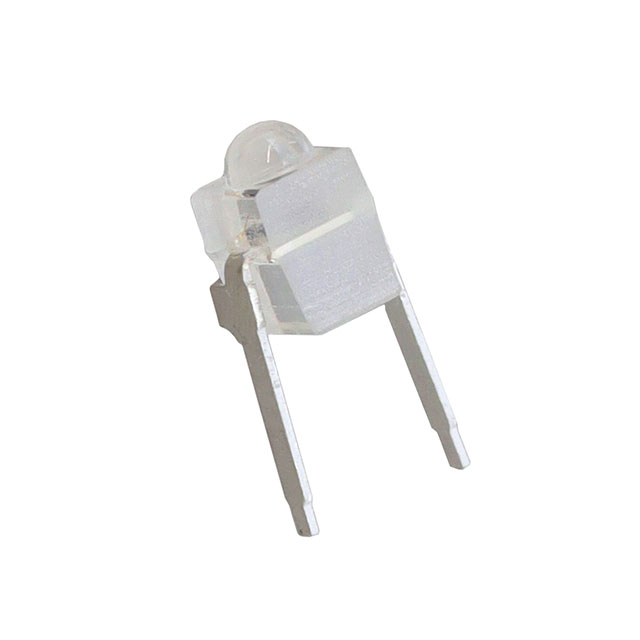

BPX 81-3/4
SENSOR PHOTO 850NM TOP VIEW RADManufacturer: ams-OSRAM USA INC.
Categories: Phototransistors
Quality Control: Learn More
ams-OSRAM USA INC. BPX-81-3-4 is a radial phototransistor designed for top-view optical sensing. This component operates at a peak wavelength of 850nm, ideal for applications requiring sensitivity in the near-infrared spectrum. It offers a maximum collector current (Ic) of 50 mA and a dark current (Id) of 25 nA, ensuring reliable performance in various ambient light conditions. The device features a breakdown voltage of 32 V (Collector Emitter) and a maximum power dissipation of 90 mW. With a viewing angle of 36°, it is suitable for applications where directional light detection is critical. The BPX-81-3-4 is available in bulk packaging and is designed for through-hole mounting. Its operating temperature range is -40°C to 80°C, making it robust for industrial environments. This phototransistor finds application in areas such as industrial automation, proximity sensing, and optical control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 850nm |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 80°C |
| Viewing Angle | 36° |
| Current - Dark (Id) (Max) | 25 nA |
| Current - Collector (Ic) (Max) | 50 mA |
| Voltage - Collector Emitter Breakdown (Max) | 32 V |
| Power - Max | 90 mW |
