SFH 2440
SENSOR PHOTODIODE 620NM 2SMD GWManufacturer: ams-OSRAM USA INC.
Categories: Photodiodes
Quality Control: Learn More

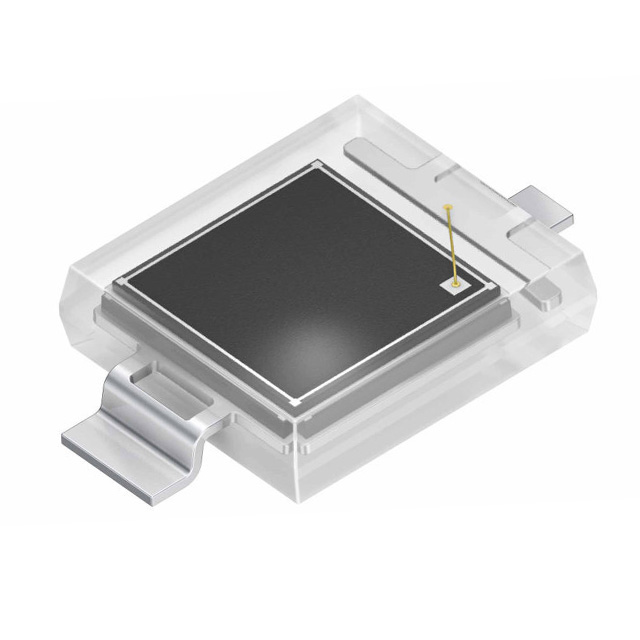

The ams-OSRAM USA INC. SFH-2440 is a silicon PIN photodiode optimized for 620nm operation. This surface mount component, housed in a 2-SMD Gull Wing package, features a typical dark current of 5nA and a reverse breakdown voltage of 16V. With a spectral range of 400nm to 690nm, it exhibits a responsivity of 0.37 A/W at 550nm and a fast response time of 90ns. The viewing angle is specified at 60°, and its active area measures 7.02mm². Operating within a temperature range of -40°C to 100°C, this photodiode is suitable for applications in industrial automation, medical instrumentation, and consumer electronics where precise light detection is critical. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Wavelength | 620nm |
| Mounting Type | Surface Mount |
| Diode Type | - |
| Operating Temperature | -40°C ~ 100°C |
| Response Time | 90ns |
| Viewing Angle | 60° |
| Spectral Range | 400nm ~ 690nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.37 A/W @ 550nm |
| Active Area | 7.02mm² |
| Current - Dark (Typ) | 5nA |
| Voltage - DC Reverse (Vr) (Max) | 16 V |
