SFH 2302
SENSOR PHOTODIODE 820NM RADIALManufacturer: ams-OSRAM USA INC.
Categories: Photodiodes
Quality Control: Learn More

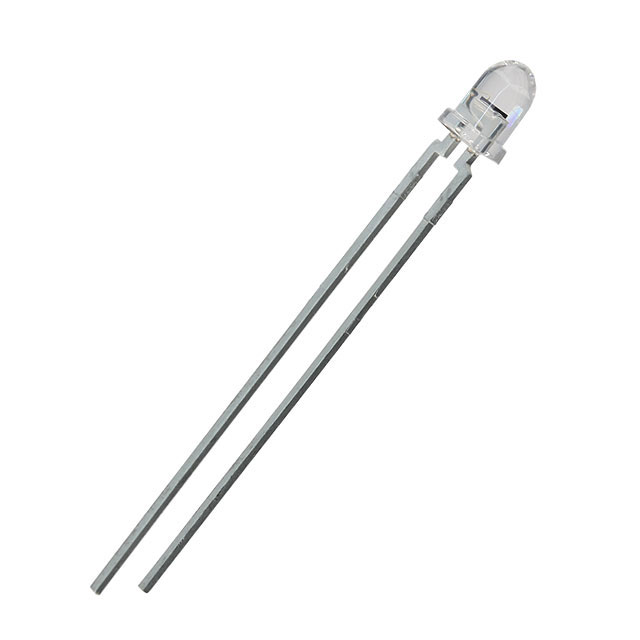

ams-OSRAM USA INC. SFH-2302 is a high-speed, silicon PIN photodiode optimized for operation at 820nm. This radial-packaged component features a 2ns response time and a spectral range from 400nm to 1050nm, with a responsivity of 0.5 A/W at 780nm. The SFH-2302 has a dark current of 50pA and a maximum reverse voltage of 15V. Its active area is 0.36mm², and it offers a 34° viewing angle. Designed for through-hole mounting, this photodiode is suitable for applications in industrial automation, medical sensing, and optical communication systems. The component is supplied in bulk packaging and operates within a temperature range of -40°C to 100°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 820nm |
| Mounting Type | Through Hole |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 100°C |
| Response Time | 2ns |
| Viewing Angle | 34° |
| Spectral Range | 400nm ~ 1050nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.5 A/W @ 780nm |
| Active Area | 0.36mm² |
| Current - Dark (Typ) | 50pA |
| Voltage - DC Reverse (Vr) (Max) | 15 V |
