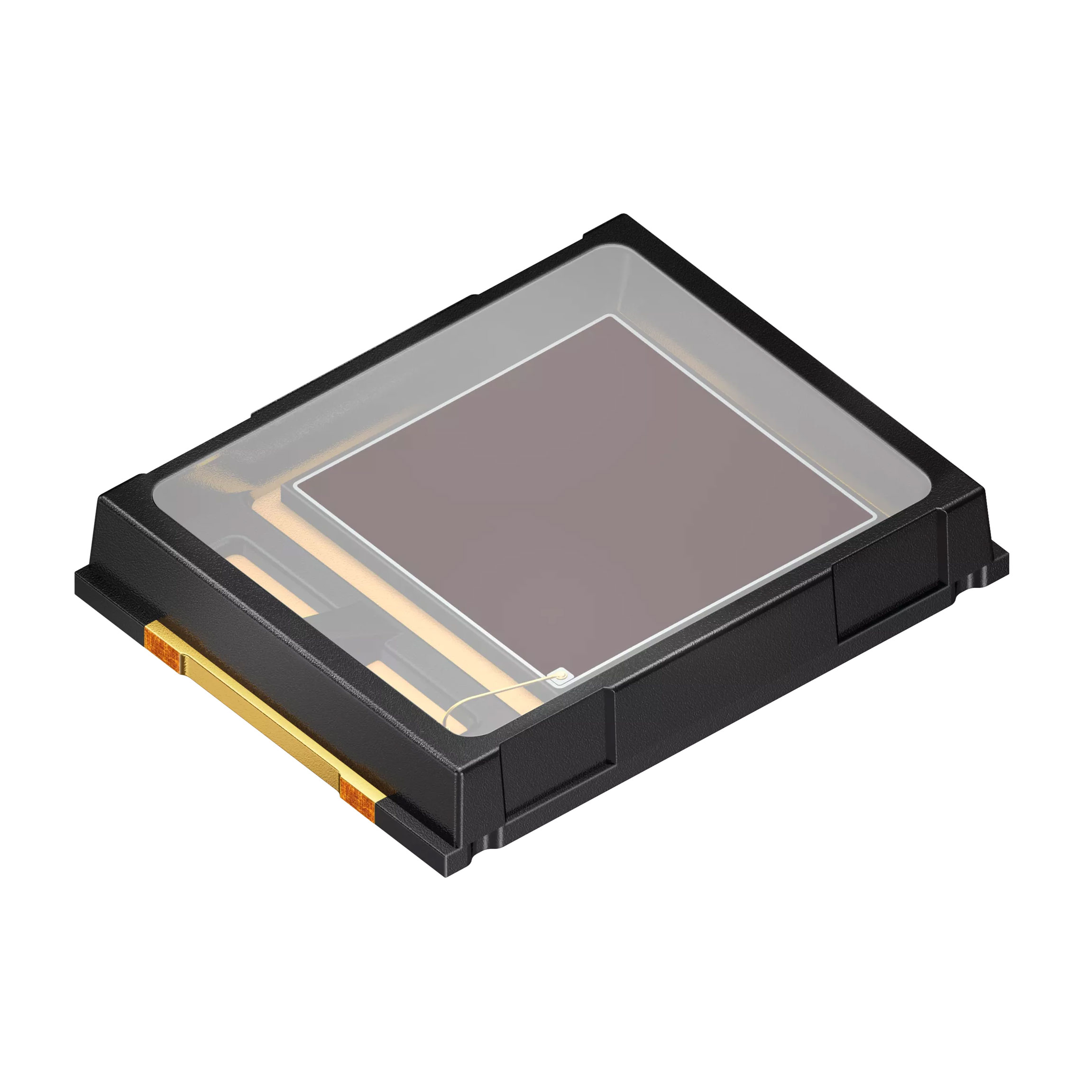

SFH 2201 A01
SENSOR PHOTODIODE 950NM 2SMDManufacturer: ams-OSRAM USA INC.
Categories: Photodiodes
Quality Control: Learn More
Photodiode 950nm 65ns, 70ns, 1.2µs, 1.6µs 120° 2-SMD, No Lead
Additional Information
Series: TOPLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Wavelength | 950nm |
| Mounting Type | Surface Mount |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 125°C |
| Response Time | 65ns, 70ns, 1.2µs, 1.6µs |
| Viewing Angle | 120° |
| Spectral Range | 300nm ~ 1100nm |
| Color - Enhanced | Blue |
| Responsivity @ nm | 0.20 A/W @ 400nm |
| Active Area | 8.12mm² |
| Current - Dark (Typ) | 1nA |
| Voltage - DC Reverse (Vr) (Max) | 16 V |
