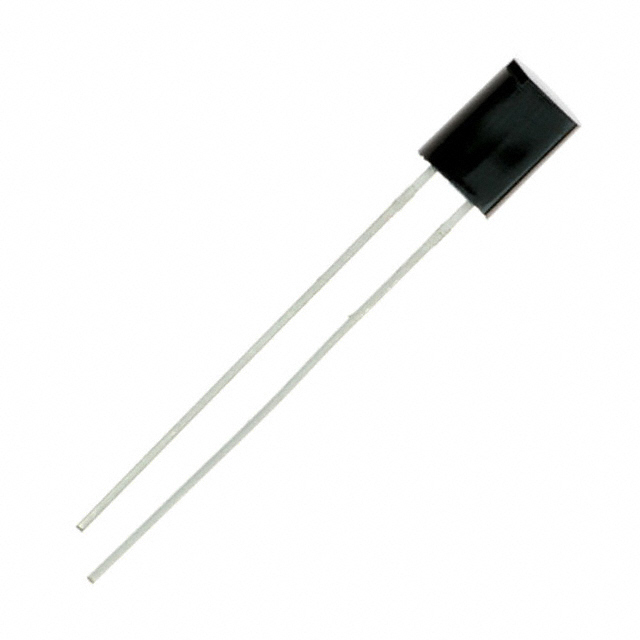

SFH 205 F
SENSOR PHOTODIODE 950NM RADIALManufacturer: ams-OSRAM USA INC.
Categories: Photodiodes
Quality Control: Learn More
ams-OSRAM USA INC. SFH-205-F is a pin photodiode designed for efficient light detection in the near-infrared spectrum. Featuring a spectral range of 800nm to 1100nm with peak sensitivity at 950nm, this component offers a fast response time of 20ns. The SFH-205-F has a wide viewing angle of 120° and a substantial active area of 7.02mm². It is packaged in a radial, through-hole configuration suitable for robust assembly. Typical dark current is 2nA, with a maximum reverse voltage rating of 32V. This photodiode is utilized in applications such as optical sensing, industrial automation, and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 100°C |
| Response Time | 20ns |
| Viewing Angle | 120° |
| Spectral Range | 800nm ~ 1100nm |
| Color - Enhanced | - |
| Responsivity @ nm | - |
| Active Area | 7.02mm² |
| Current - Dark (Typ) | 2nA |
| Voltage - DC Reverse (Vr) (Max) | 32 V |
