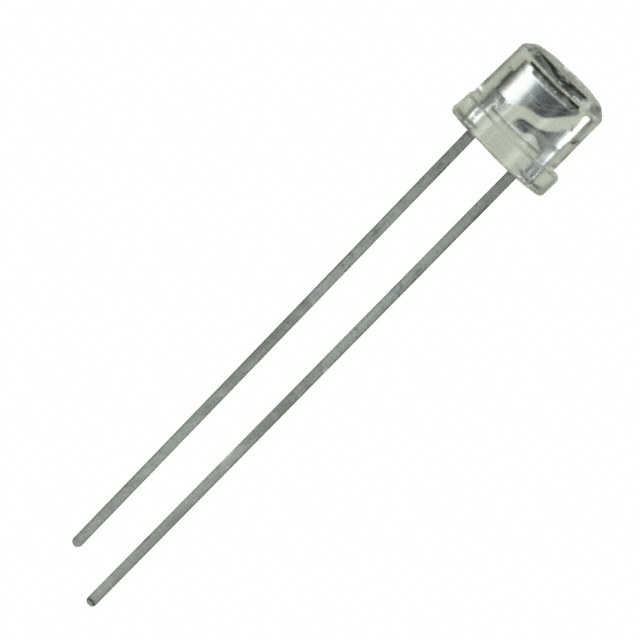

SFH 203 P
SENSOR PHOTODIODE 850NM RADIALManufacturer: ams-OSRAM USA INC.
Categories: Photodiodes
Quality Control: Learn More
The ams-OSRAM USA INC. SFH-203-P is a pin photodiode designed for efficient light detection. This component offers a spectral range of 400nm to 1100nm, with peak responsivity of 0.62 A/W at 850nm. Its fast response time of 5ns is suitable for high-speed optical sensing applications. The SFH-203-P features a 1mm² active area and a wide 150° viewing angle, enabling broad light capture. It operates with a maximum reverse voltage of 50V and maintains low dark current of 1nA at typical conditions. This radial package component is rated for operating temperatures from -40°C to 100°C and is supplied in bulk packaging. Applications include industrial automation, medical instrumentation, and security systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 850nm |
| Mounting Type | Through Hole |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 100°C |
| Response Time | 5ns |
| Viewing Angle | 150° |
| Spectral Range | 400nm ~ 1100nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.62 A/W @ 850nm |
| Active Area | 1mm² |
| Current - Dark (Typ) | 1nA |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
