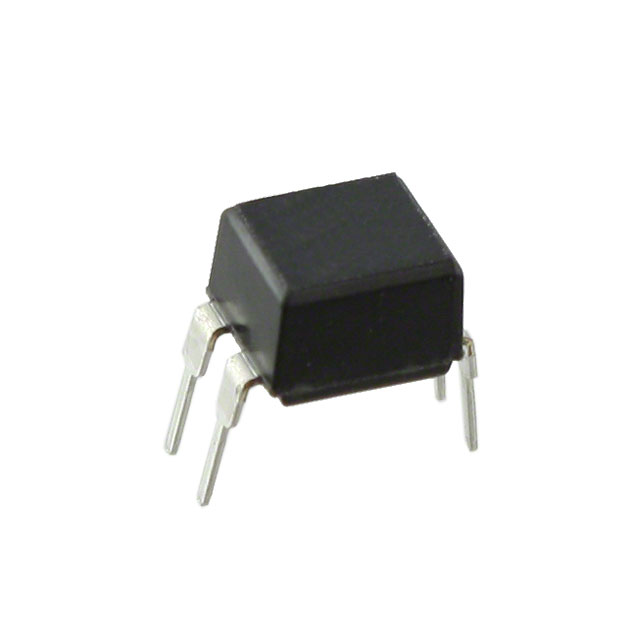

BPX 48
SENSOR PHOTODIODE 900NM 4DIPManufacturer: ams-OSRAM USA INC.
Categories: Photodiodes
Quality Control: Learn More
The ams-OSRAM USA INC. BPX-48 is a photodiode designed for optical sensing applications. This component features a spectral range of 400nm to 1150nm, with peak sensitivity at 900nm. It offers a fast response time of 500ns, making it suitable for dynamic measurement systems. The photodiode is housed in a 4-DIP (0.300", 7.62mm) package with a wide viewing angle of 120°. Key electrical characteristics include a typical dark current of 10nA and a maximum reverse voltage of 10V. With an active area of 1.54mm², it is engineered for through-hole mounting. This device finds application in areas such as consumer electronics, industrial automation, and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-DIP (0.300"", 7.62mm) |
| Wavelength | 900nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -40°C ~ 80°C |
| Response Time | 500ns |
| Viewing Angle | 120° |
| Spectral Range | 400nm ~ 1150nm |
| Color - Enhanced | - |
| Responsivity @ nm | - |
| Active Area | 1.54mm² |
| Current - Dark (Typ) | 10nA |
| Voltage - DC Reverse (Vr) (Max) | 10 V |
