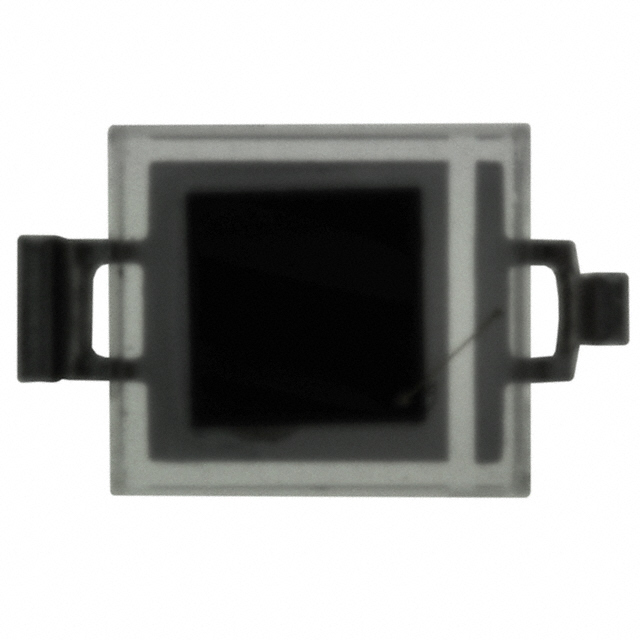

BP 104 S-Z
SENSOR PHOTODIODE 850NM 2SMDManufacturer: ams-OSRAM USA INC.
Categories: Photodiodes
Quality Control: Learn More
The ams-OSRAM USA INC. BP-104-S-Z is a high-performance PIN photodiode designed for robust optical sensing applications. Featuring a spectral range of 400nm to 1100nm and a peak sensitivity at 850nm, this component offers a fast 20ns response time, making it suitable for demanding applications. The 120° viewing angle and a 2-SMD, Z-Bend package facilitate efficient light collection and surface mount integration. With a dark current of 2nA and a maximum reverse voltage of 20V, the BP-104-S-Z demonstrates excellent signal-to-noise ratio. Its operational temperature range of -40°C to 100°C ensures reliability across various environmental conditions. This photodiode is commonly utilized in industrial automation, medical devices, and security systems where precise optical detection is critical. Supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Wavelength | 850nm |
| Mounting Type | Surface Mount |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 100°C |
| Response Time | 20ns |
| Viewing Angle | 120° |
| Spectral Range | 400nm ~ 1100nm |
| Color - Enhanced | - |
| Responsivity @ nm | - |
| Active Area | 4.84mm² |
| Current - Dark (Typ) | 2nA |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
