AS1374-BWLT1827
IC REG LINEAR 1.8V/2.7V 6WLCSPManufacturer: ams-OSRAM USA INC.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The ams-OSRAM USA INC. AS1374-BWLT1827 is a dual output linear voltage regulator IC. This device provides two fixed positive outputs of 1.8V and 2.7V, each capable of delivering up to 200mA. Designed for surface mount applications, it is supplied in a compact 6-WLCSP package on a tape and reel. The AS1374-BWLT1827 features an enable control pin and offers protection against over-current and over-temperature conditions. Its quiescent current is rated at 90 µA, and it exhibits excellent power supply rejection ratios (PSRR) ranging from 85dB at 1kHz down to 50dB at 100kHz. This component is suitable for applications in consumer electronics and portable devices where efficient and stable voltage regulation is critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

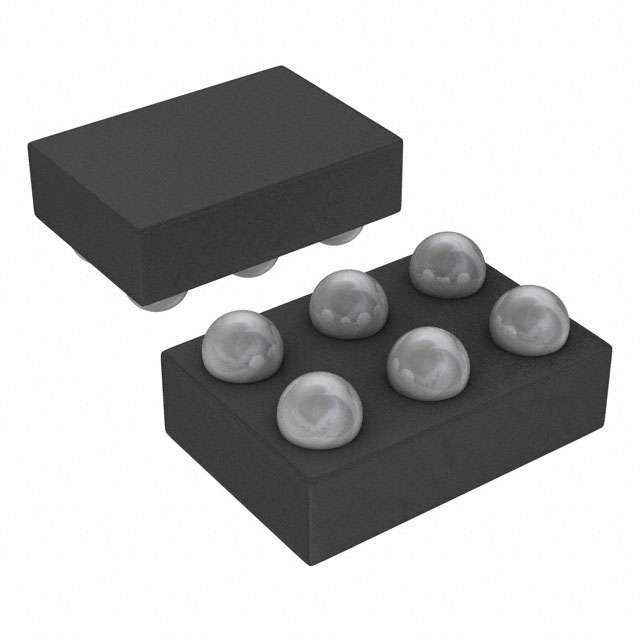

| Package / Case | 6-UFBGA, WLCSP |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 200mA, 200mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 90 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 2 |
| Supplier Device Package | 6-WLCSP |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V, 2.7V |
| Control Features | Enable |
| PSRR | 85dB ~ 50dB (1kHz ~ 100kHz) |
| Voltage Dropout (Max) | -, 0.15V @ 100mA |
| Protection Features | Over Current, Over Temperature |
