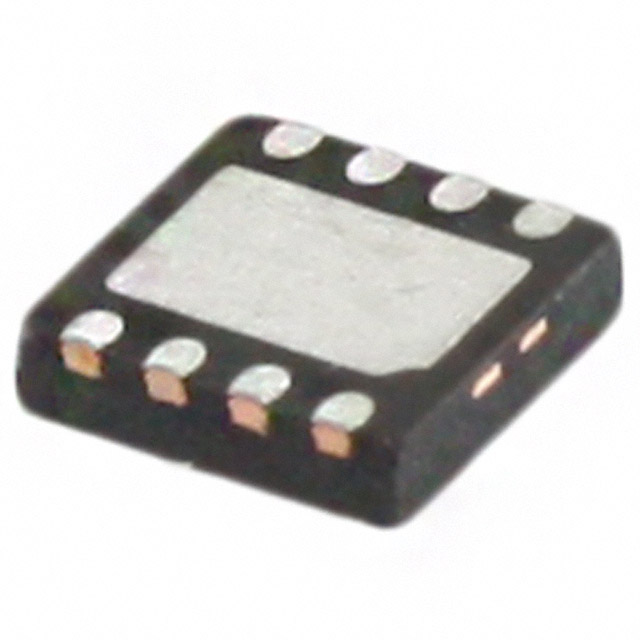

AS1364-BTDT-AD
IC REG LINEAR POS ADJ 1A 8TDFNManufacturer: ams-OSRAM USA INC.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The ams-OSRAM USA INC. AS1364-BTDT-AD is a single-output, positive adjustable linear voltage regulator IC designed for high-performance applications. It delivers a continuous output current of 1A with a low dropout voltage of 0.32V at 1A. The device features a wide input voltage range up to 5.5V and offers an adjustable output voltage from 1.2V to a maximum of 5.3V. Key control features include an Enable pin for power management and a Power Good output signal for system monitoring. Protection mechanisms such as over-current and over-temperature shutdown are integrated for enhanced reliability. With a quiescent current of 150 µA, it is suitable for power-sensitive designs. The AS1364-BTDT-AD is supplied in an 8-TDFN (3x3) exposed pad package, suitable for surface mounting. This component finds application in consumer electronics, industrial automation, and automotive systems requiring stable and efficient voltage regulation.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 150 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-TDFN (3x3) |
| Voltage - Output (Max) | 5.3V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Control Features | Enable, Power Good |
| PSRR | 72dB ~ 46dB (1kHz ~ 100kHz) |
| Voltage Dropout (Max) | 0.32V @ 1A |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 200 µA |
