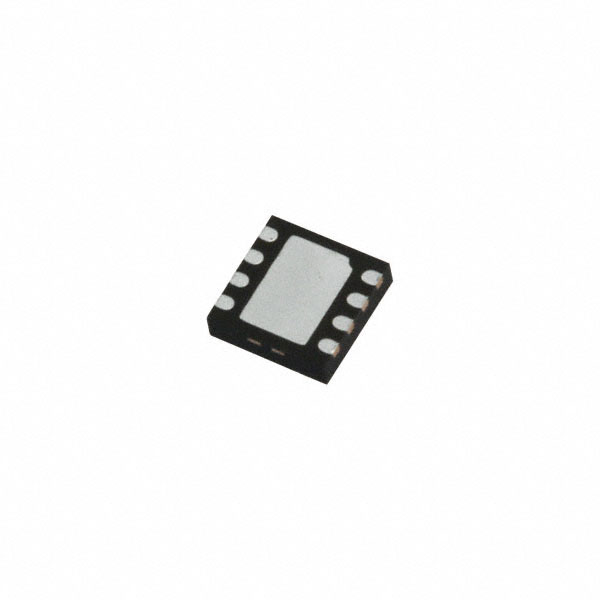

AS1364-BTDT-45
IC REG LINEAR 4.5V 1A 8TDFNManufacturer: ams-OSRAM USA INC.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The AS1364-BTDT-45 from ams-OSRAM USA INC. is a fixed 4.5V positive linear voltage regulator IC capable of delivering up to 1A of output current. This device features a low quiescent current of 150 µA and a maximum input voltage of 5.5V. Protection mechanisms include over-current and over-temperature shutdown. The regulator offers a Power Good output and an Enable pin for enhanced control. Its Power Supply Rejection Ratio (PSRR) ranges from 78dB at 1kHz to 46dB at 100kHz. Supplied in an 8-TDFN (3x3) package on tape and reel, the AS1364-BTDT-45 is suitable for applications requiring stable voltage regulation, such as portable electronics and power management systems. It operates across a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 150 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-TDFN (3x3) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 4.5V |
| Control Features | Enable, Power Good |
| PSRR | 78dB ~ 46dB (1kHz ~ 100kHz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 200 µA |
