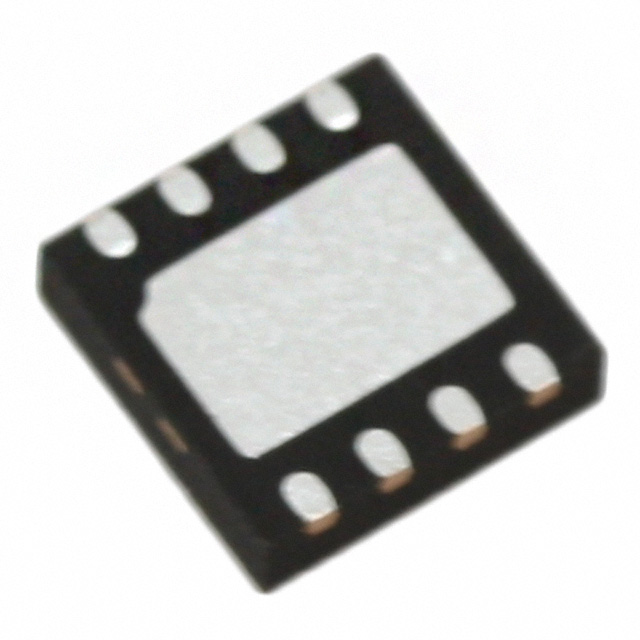

AS1364-BTDT-33
IC REG LINEAR 3.3V 1A 8TDFNManufacturer: ams-OSRAM USA INC.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The ams-OSRAM USA INC. AS1364-BTDT-33 is a fixed output linear voltage regulator IC. This single-output device delivers 1A with a typical dropout voltage of 0.32V at 1A, operating from an input voltage range up to 5.5V. The output voltage is precisely fixed at 3.3V. Key features include an enable pin for power management and a Power Good output signal. Protection mechanisms such as over-current and over-temperature shutdown are integrated. With a quiescent current of 150 µA and a supply current of 200 µA, it is suitable for power-sensitive applications. The AS1364-BTDT-33 is packaged in an 8-TDFN (3x3) surface-mount configuration, supplied on tape and reel. This component finds application in areas such as consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 150 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-TDFN (3x3) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Enable, Power Good |
| PSRR | 78dB ~ 46dB (1kHz ~ 100kHz) |
| Voltage Dropout (Max) | 0.32V @ 1A |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 200 µA |
