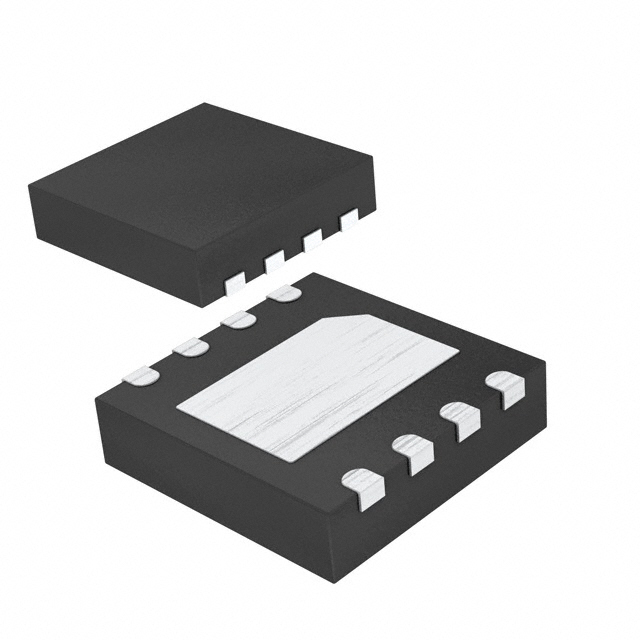

AS1364-BTDT-18
IC REG LINEAR 1.8V 1A 8TDFNManufacturer: ams-OSRAM USA INC.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The ams-OSRAM USA INC. AS1364-BTDT-18 is a positive, fixed output linear voltage regulator IC delivering 1A output current. This device features an input voltage range up to 5.5V and provides a stable 1.8V output. Key control features include Enable and Power Good signals, enhancing system monitoring capabilities. Protection mechanisms are integrated, offering Over Current and Over Temperature shutdown. The quiescent current is rated at 150 µA, with a maximum supply current of 200 µA. Power Supply Rejection Ratio (PSRR) performance ranges from 78dB at 1kHz to 46dB at 100kHz. The AS1364-BTDT-18 is supplied in an 8-TDFN (3x3) surface mount package, presented on a Tape & Reel (TR). This component is suitable for applications in consumer electronics, industrial control systems, and battery-powered devices.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 150 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-TDFN (3x3) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V |
| Control Features | Enable, Power Good |
| PSRR | 78dB ~ 46dB (1kHz ~ 100kHz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 200 µA |
