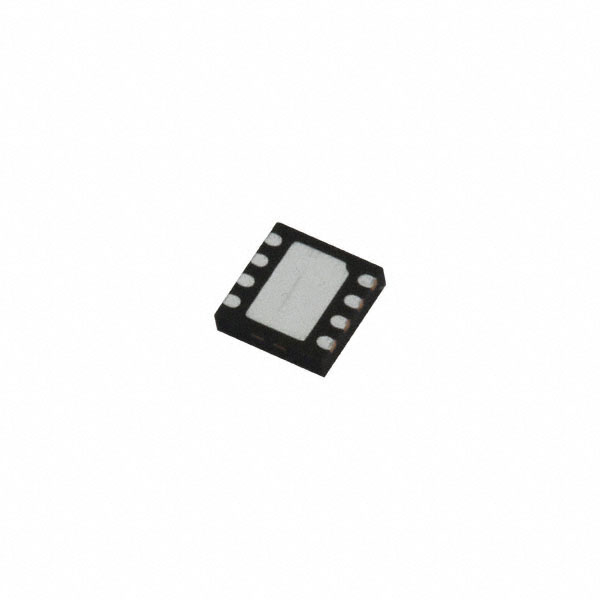

AS1364-BTDT-15
IC REG LINEAR 1.5V 1A 8TDFNManufacturer: ams-OSRAM USA INC.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The ams-OSRAM USA INC. AS1364-BTDT-15 is a single-output positive fixed linear voltage regulator IC. This device delivers 1A of output current with a fixed 1.5V output voltage and features an 8-TDFN (3x3) exposed pad package for efficient thermal management. Key control features include Enable and Power Good signals, enhancing system monitoring and control. Protection circuitry comprises over-current and over-temperature safeguards. With a quiescent current of 150 µA and an input voltage range up to 5.5V, the AS1364-BTDT-15 is suitable for applications requiring stable power delivery with low standby consumption. Its typical applications span industrial automation, test and measurement equipment, and consumer electronics. The device operates across a temperature range of -40°C to 85°C and is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 150 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-TDFN (3x3) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | Enable, Power Good |
| PSRR | 78dB ~ 46dB (1kHz ~ 100kHz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 200 µA |
