AS1357V
IC REG LIN POS PROG 200MA 16QFNManufacturer: ams-OSRAM USA INC.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The ams-OSRAM USA INC. AS1357V is a versatile linear voltage regulator IC offering three positive programmable outputs, each capable of delivering up to 200mA. This device features programmable output voltages ranging from 1.8V to 3.3V, with a maximum input voltage of 5.5V. The AS1357V provides excellent power supply rejection ratio (PSRR) performance, ranging from 70dB at 1kHz to 40dB at 100kHz, making it suitable for noise-sensitive applications. Protection features include over-current, over-temperature, and soft-start functionality. With a quiescent current of 275µA and an enable control feature, it is designed for power-efficient operation. This component is supplied in a 16-QFN (3x3) package, suitable for surface mount applications. The AS1357V finds application in portable electronics, consumer devices, and industrial control systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |

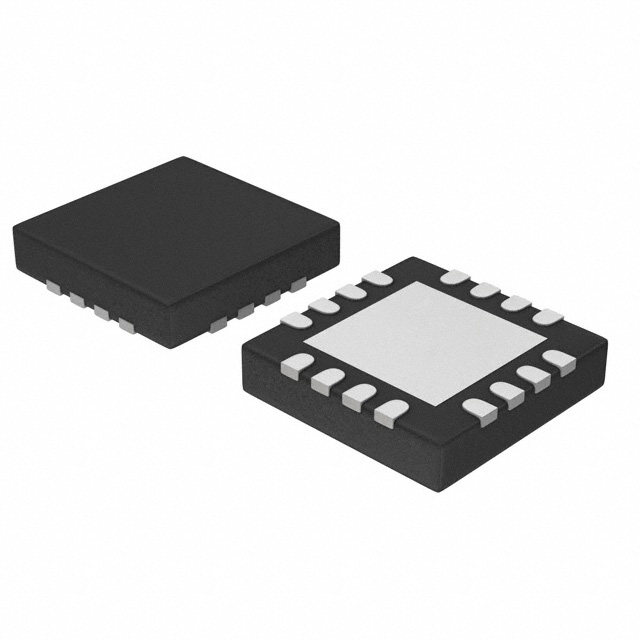

| Package / Case | 16-VFQFN Exposed Pad |
| Output Type | Programmable |
| Mounting Type | Surface Mount |
| Current - Output | 200mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 275 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 3 |
| Supplier Device Package | 16-QFN (3x3) |
| Voltage - Output (Max) | 3.3V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Control Features | Enable |
| PSRR | 70dB ~ 40dB (1KHz ~ 100kHz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature, Soft Start |
