LZP-00GW00-0028
LED WARM WHITE 2850K 98CRI 24SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. LZP-00GW00-0028 is a LuxiGen™ LZP series LED designed for high-quality white lighting applications. This warm white LED features a CCT of 2850K within a 3-step MacAdam ellipse, ensuring excellent color consistency. It boasts a superior CRI of 98, delivering highly accurate color rendering. The component is packaged in a 24-SMD, no lead exposed pad configuration, with dimensions of 12.00mm x 12.00mm and a maximum seated height of 6.60mm. Operating at a typical forward voltage of 19.4V, it is designed for driving at 4 x 700mA, with a maximum current rating of 1A. At the test current, it produces 2775 lumens with a luminous efficacy of 51 lm/W and a wide 110° viewing angle. This LED is commonly utilized in architectural lighting, stage and studio lighting, and general illumination where precise color and high lumen output are critical.
Additional Information
Series: LuxiGen™ LZPRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 24-SMD, No Lead Exposed Pad |
| Color | White, Warm |
| Size / Dimension | 0.472"" L x 0.472"" W (12.00mm x 12.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 19.4V |
| Current - Test | 4 x 700mA |
| Viewing Angle | 110° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 51 lm/W |
| Height - Seated (Max) | 0.260"" (6.60mm) |
| CCT (K) | 2850K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 98 |
| Flux @ 25°C, Current - Test | 2775lm (2350lm ~ 3200lm) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

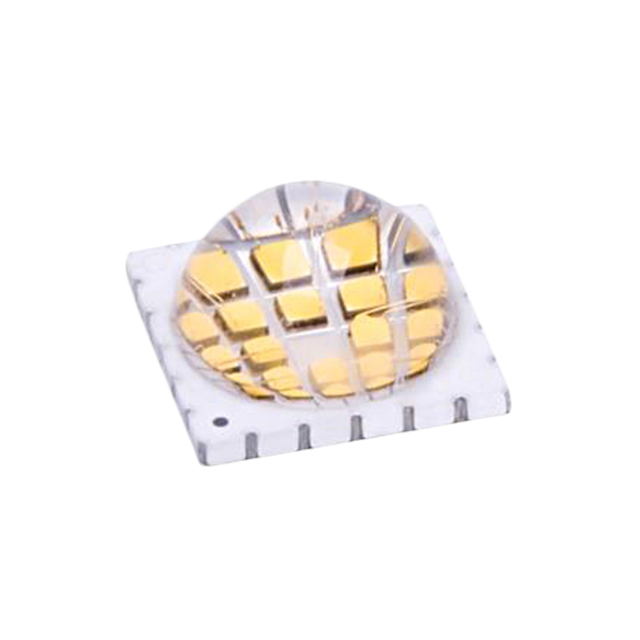

LZP-00GW00-0027
