LW W5SG-GYHY-5K8L-Z
LED GOLDEN DRAGON COOL WHT SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More

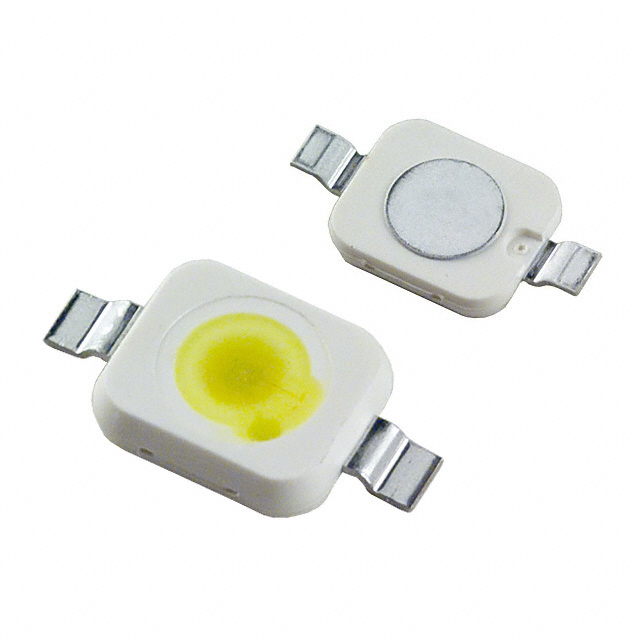

The ams-OSRAM USA INC. Golden DRAGON® LW-W5SG-GYHY-5K8L-Z is a surface-mount cool white LED with a correlated color temperature (CCT) of 6500K. This component features a typical forward voltage of 3.8V and is specified for a test current of 350mA, with a maximum current capability of 500mA. At the test current, it delivers 30 lumens (lm) with a luminous efficacy of 23 lm/W and a Color Rendering Index (CRI) of 80. The viewing angle is 120 degrees. The package type is 2-SMD, Gull Wing Exposed Pad measuring 7.00mm x 6.00mm, with a maximum seated height of 2.00mm. This LED is supplied in Tape & Reel (TR) packaging and is commonly utilized in general lighting and architectural lighting applications.
Additional Information
Series: Golden DRAGON®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Color | White, Cool |
| Size / Dimension | 0.276"" L x 0.236"" W (7.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.8V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 500mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 23 lm/W |
| Height - Seated (Max) | 0.079"" (2.00mm) |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 30lm (21lm ~ 39lm) |
| Flux @ 85°C, Current - Test | - |
