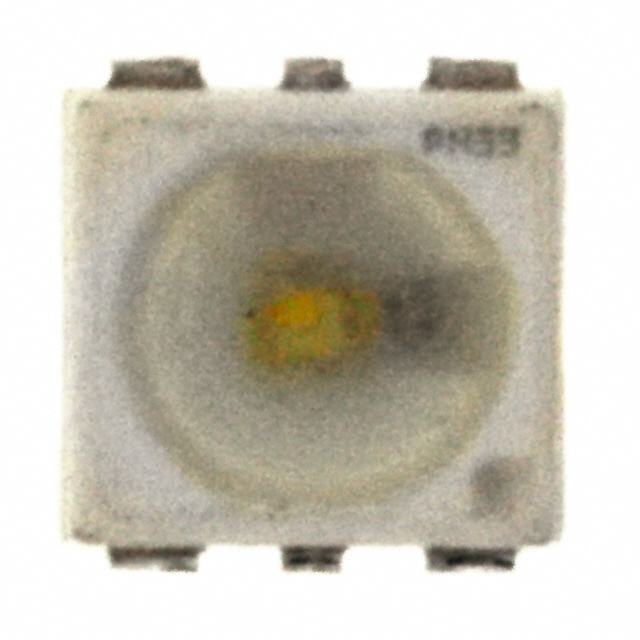

LW G6SP-CADB-2K6L-1-Z
LED TOPLED COOL WHT 5600K 6PLCCManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
ams-OSRAM USA INC. presents the Advanced Power TOPLED® LW-G6SP-CADB-2K6L-1-Z, a cool white LED with a correlated color temperature (CCT) of 5600K. This component features a typical forward voltage of 3.6V and a test current of 140mA, delivering a luminous flux of 19 lumens at 25°C. Designed with a broad 120° viewing angle, it offers 38 lumens per watt efficiency at the test current. The LED is housed in a 6-SMD, J-Lead package, measuring 0.130" L x 0.118" W (3.30mm x 3.00mm) with a maximum seated height of 0.083" (2.10mm). The LW-G6SP-CADB-2K6L-1-Z is suitable for surface mount applications and is supplied in Tape & Reel packaging. Its typical CRI is 80. This lighting solution finds application in general illumination and automotive lighting systems.
Additional Information
Series: Advanced Power TOPLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | White, Cool |
| Size / Dimension | 0.130"" L x 0.118"" W (3.30mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Current - Test | 140mA |
| Viewing Angle | 120° |
| Current - Max | 250mA |
| Supplier Device Package | 6-PLCC |
| Lumens/Watt @ Current - Test | 38 lm/W |
| Height - Seated (Max) | 0.083"" (2.10mm) |
| CCT (K) | 5600K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 19lm (Typ) |
| Flux @ 85°C, Current - Test | - |
