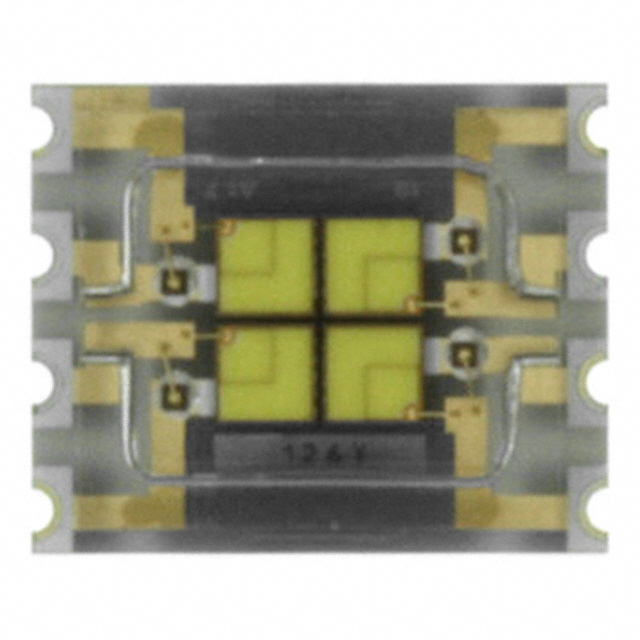

LE UW S2W-NZPZ-FRKV
LED OSTAR WHITE 4CHIP SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. OSRAM OSTAR® LE-UW-S2W-NZPZ-FRKV is a high-power LED component designed for demanding illumination applications. This 4-chip white LED features a 6737K correlated color temperature and a wide 120° viewing angle. Operating at a typical forward voltage of 3.45V, it can handle a maximum current of 4 x 1A, with a test current of 4 x 700mA delivering 550 lumens. The component is housed in an 8-SMD, No Lead Exposed Pad package, measuring 5.78mm x 4.68mm, with a seated height of 1.23mm. Its robust design and efficient light output make it suitable for automotive lighting, industrial illumination, and general lighting solutions where high brightness and color consistency are critical. The LE-UW-S2W-NZPZ-FRKV is supplied on a tape and reel for automated assembly processes.
Additional Information
Series: OSRAM OSTAR®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, No Lead Exposed Pad |
| Size / Dimension | 0.228"" L x 0.184"" W (5.78mm x 4.68mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.45V |
| Current - Test | 4 x 700mA |
| Viewing Angle | 120° |
| Current - Max | 4 x 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 55 lm/W |
| Height - Seated (Max) | 0.048"" (1.23mm) |
| CCT (K) | 6737K |
| CRI (Color Rendering Index) | - |
| Flux @ 25°C, Current - Test | 550lm (450lm ~ 820lm) |
| Flux @ 85°C, Current - Test | 50lm |
