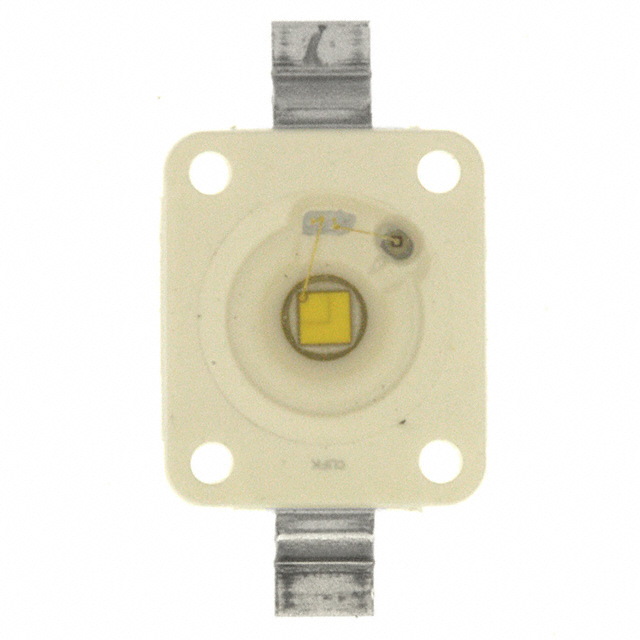

LCW W5SN-JZLY-4L9X-0-700-R18-Z-SF
LED PLATINUM DRAGON SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
The ams-OSRAM Platinum DRAGON LED, part number LCW-W5SN-JZLY-4L9X-0-700-R18-Z-SF, is a high-performance white lighting component designed for surface mount applications. This 2-SMD, Gull Wing Exposed Pad package features a typical forward voltage of 3.6V and operates with a test current of 700mA, capable of handling a maximum current of 1A. Its broad 120° viewing angle and 7.00mm x 6.00mm footprint make it suitable for various illumination solutions. The component offers a Color Rendering Index (CRI) of 80, ensuring accurate color representation. This robust LED is commonly employed in general lighting, architectural lighting, and automotive applications where reliable and efficient white light output is critical. It is supplied on tape and reel for automated assembly.
Additional Information
Series: Platinum DRAGONRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Color | White |
| Size / Dimension | 0.276"" L x 0.236"" W (7.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Current - Max | 1A |
| Supplier Device Package | 2-SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.079"" (2.00mm) |
| CCT (K) | - |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

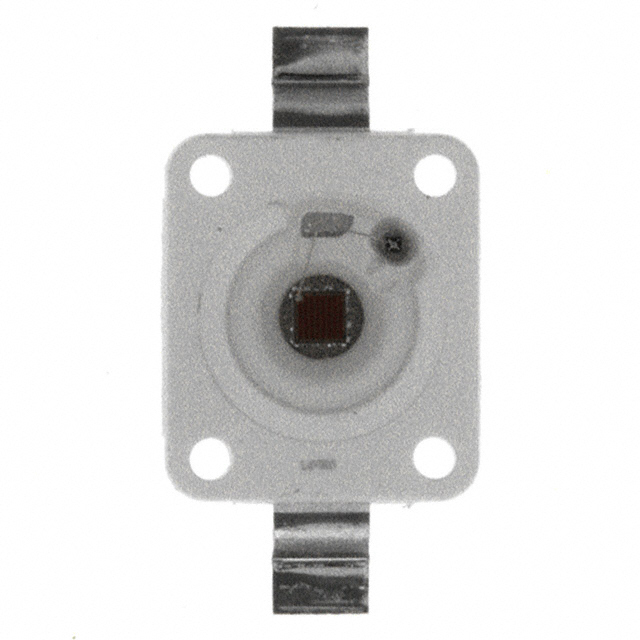

LA W5SN-JZKZ-24-0-700-R18-Z
