LCW W5SM-HZJZ-4O9Q-Z
LED GOLDEN DRAGON WARM WHT 2SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More

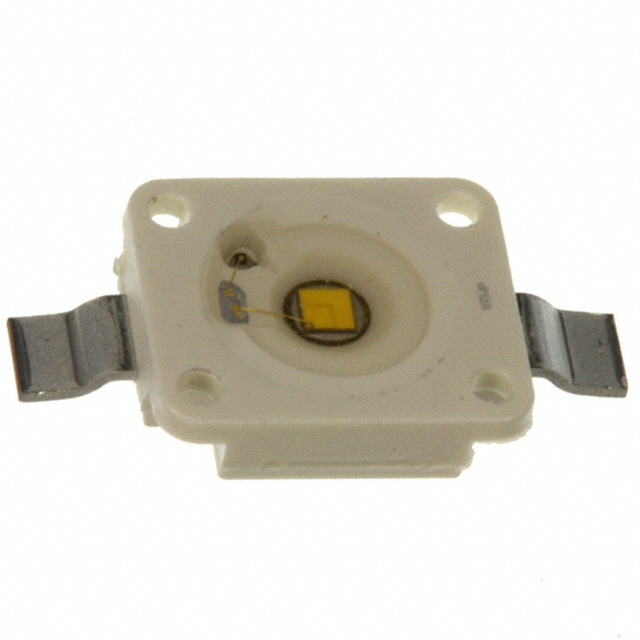

ams-OSRAM USA INC. Golden DRAGON® LCW-W5SM-HZJZ-4O9Q-Z is a warm white LED with a correlated color temperature (CCT) of 3500K. This component features a typical forward voltage of 3.2V and a test current of 350mA, producing a luminous flux of 55 lumens and an efficacy of 49 lm/W at 25°C. The viewing angle is 120°, and it has a Color Rendering Index (CRI) of 80. The LED is housed in a 2-SMD, Gull Wing Exposed Pad package, measuring 7.00mm in length and 6.00mm in width with a maximum seated height of 2.00mm. This device is suitable for general illumination applications requiring a warm white light source. It is supplied in Tape & Reel packaging.
Additional Information
Series: Golden DRAGON®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Color | White, Warm |
| Size / Dimension | 0.276"" L x 0.236"" W (7.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 49 lm/W |
| Height - Seated (Max) | 0.079"" (2.00mm) |
| CCT (K) | 3500K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 55lm (39lm ~ 71lm) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

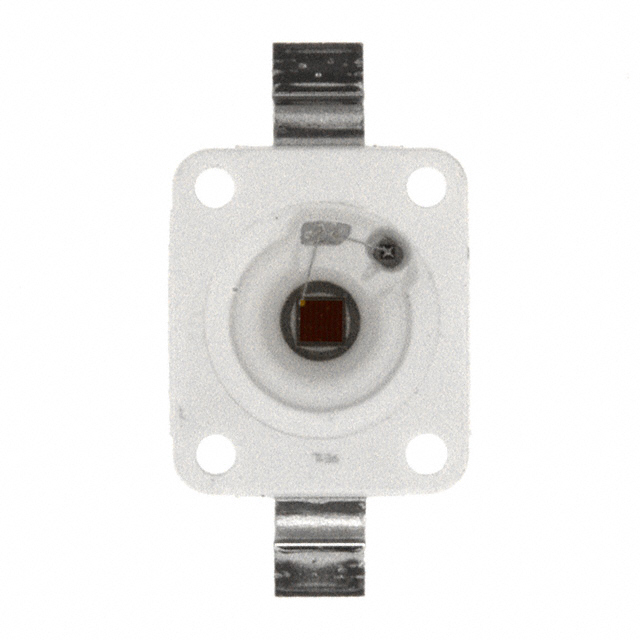

LA W5SM-HXJX-24-0-400-R18-Z
LED GOLDEN DRAGON AMB 618NM SMD
LA W5SM-HZJY-34-1-400-R18-Z-HAN
LED GOLDEN DRAGON AMBER 618NM

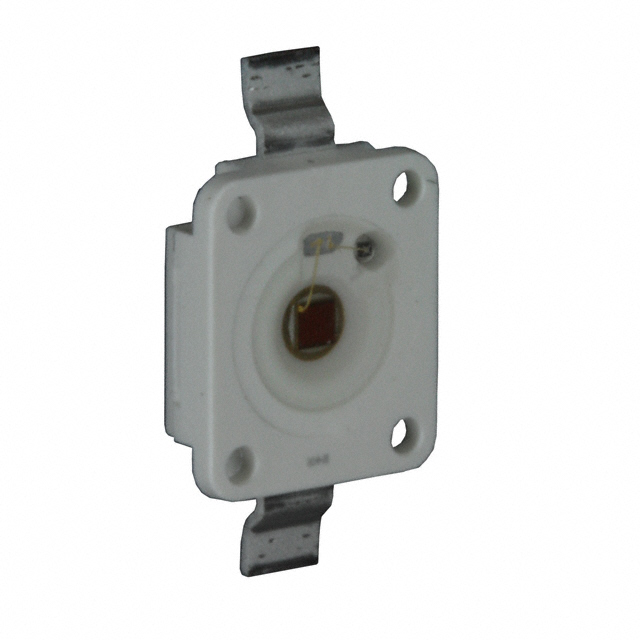

LA W5SM-HZJZ-2-1-400-R18-Z-XX
