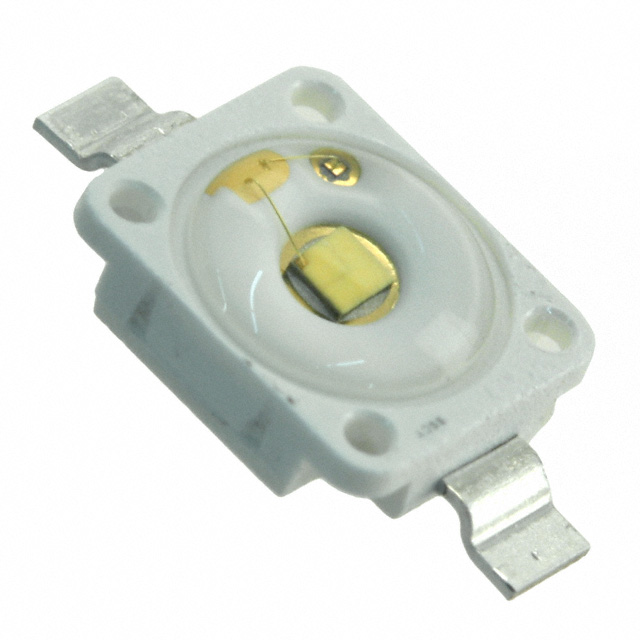

LCW W5AM-JZKZ-4O9Q-Z
LED GOLDEN DRAGON WARM WHT 2SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. Golden DRAGON® Plus series LCW-W5AM-JZKZ-4O9Q-Z is a warm white LED designed for robust lighting applications. Featuring a 3500K correlated color temperature and a CRI of 80, this component delivers 87 lumens at a test current of 350mA, with a typical forward voltage of 3.2V. The LED boasts a wide 170° viewing angle and is housed in a 2-SMD, Gull Wing Exposed Pad package, measuring 6.00mm x 6.00mm. Its high luminous efficacy of 78 lm/W at the test current makes it suitable for energy-efficient designs. This component is commonly utilized in general illumination, architectural lighting, and automotive interior lighting solutions. It is supplied in Tape & Reel packaging. The maximum continuous current rating is 1A.
Additional Information
Series: Golden DRAGON® PlusRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Color | White, Warm |
| Size / Dimension | 0.236"" L x 0.236"" W (6.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 350mA |
| Viewing Angle | 170° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 78 lm/W |
| Height - Seated (Max) | 0.122"" (3.10mm) |
| CCT (K) | 3500K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 87lm (61lm ~ 112lm) |
| Flux @ 85°C, Current - Test | - |
