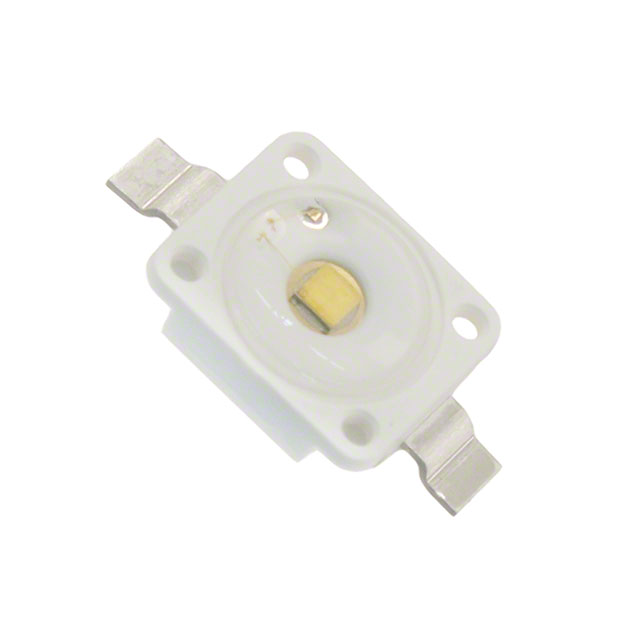

LCW W5AM-JZKY-4U9X-0-350-R18-Z
LED GOLDEN DRAGON WARM WHT 2SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. Golden DRAGON® Plus series LCW-W5AM-JZKY-4U9X-0-350-R18-Z is a warm white LED designed for general illumination applications. Featuring a correlated color temperature of 2700K and a typical CRI of 80, this component delivers a luminous flux of 79 lumens at its test current of 350mA. The LED operates with a forward voltage of 3.2V and has a maximum forward current rating of 1A. Its wide 170° viewing angle is achieved within a 2-SMD, Gull Wing Exposed Pad package, measuring 6.00mm x 6.00mm. The exposed pad facilitates efficient thermal management. This LED is supplied on tape and reel. Applications include automotive lighting, architectural lighting, and task lighting.
Additional Information
Series: Golden DRAGON® PlusRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Color | White, Warm |
| Size / Dimension | 0.236"" L x 0.236"" W (6.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 350mA |
| Viewing Angle | 170° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 71 lm/W |
| Height - Seated (Max) | 0.122"" (3.10mm) |
| CCT (K) | 2700K |
| CRI (Color Rendering Index) | 80 (Typ) |
| Flux @ 25°C, Current - Test | 79lm (61lm ~ 97lm) |
| Flux @ 85°C, Current - Test | - |
