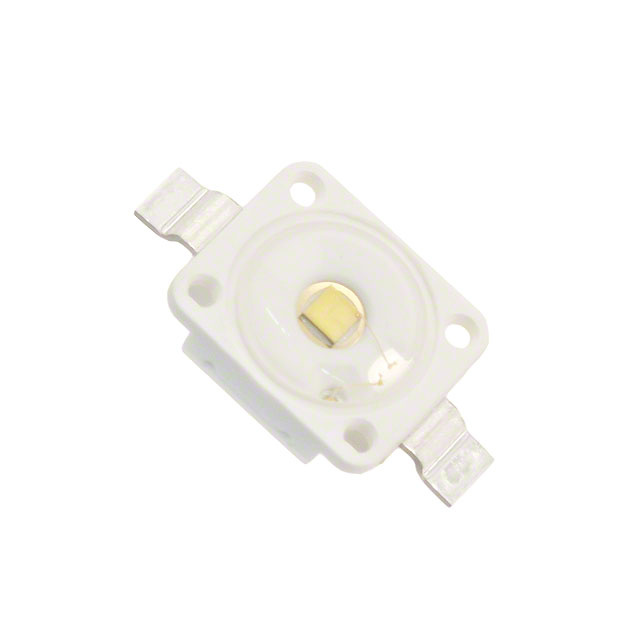

LCW W5AM-JZKY-4R9T-Z
LED GOLDEN DRAGON WARM WHT 2SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. Golden DRAGON® Plus LCW-W5AM-JZKY-4R9T-Z is a surface-mount LED designed for demanding lighting applications. This warm white LED features a correlated color temperature (CCT) of 3000K and a Color Rendering Index (CRI) of 80, providing excellent color fidelity. It operates with a typical forward voltage of 3.2V and a test current of 350mA, delivering 79 lumens with a luminous efficacy of 71 lm/W. The component is housed in a 2-SMD, Gull Wing Exposed Pad package, measuring 6.00mm x 6.00mm, with a maximum seated height of 3.10mm. Its wide 170° viewing angle makes it suitable for general illumination and architectural lighting. The Golden DRAGON® Plus series is known for its robust performance in automotive and industrial lighting sectors. This device is supplied in Tape & Reel packaging.
Additional Information
Series: Golden DRAGON® PlusRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Color | White, Warm |
| Size / Dimension | 0.236"" L x 0.236"" W (6.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 350mA |
| Viewing Angle | 170° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 71 lm/W |
| Height - Seated (Max) | 0.122"" (3.10mm) |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 79lm (61lm ~ 97lm) |
| Flux @ 85°C, Current - Test | - |
