LCW W5AM-JYKY-4R9T-Z
LED GOLDEN DRAGON WARM WHT 3000KManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More

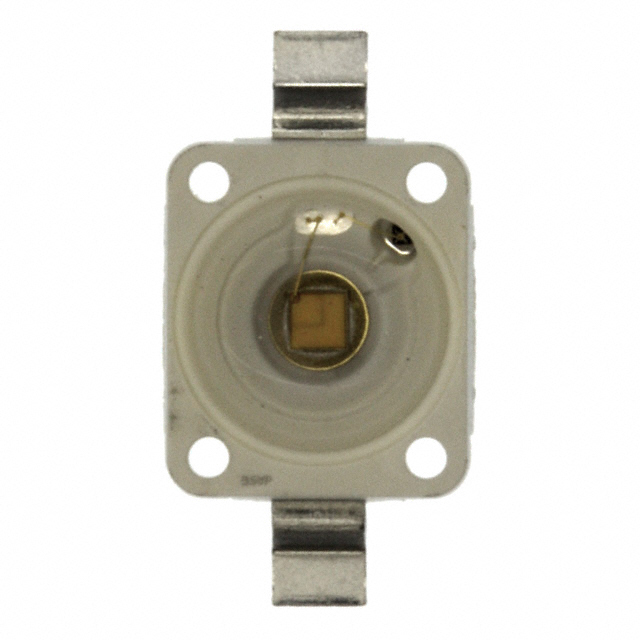

The ams-OSRAM USA INC. LCW-W5AM-JYKY-4R9T-Z is a Golden DRAGON® Plus series white LED. This component features a warm white color temperature of 3000K and a typical forward voltage of 3.2V at a test current of 350mA. It delivers a luminous flux of 75lm at 25°C with a specified CRI of 80. The device has a wide viewing angle of 170° and a maximum continuous forward current rating of 1A. The package is a 2-SMD, Gull Wing Exposed Pad with dimensions of 6.00mm x 6.00mm, designed for surface mounting and supplied in Tape & Reel packaging. This LED is suitable for general lighting applications where a warm white appearance is desired.
Additional Information
Series: Golden DRAGON® PlusRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Color | White, Warm |
| Size / Dimension | 0.236"" L x 0.236"" W (6.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 350mA |
| Viewing Angle | 170° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 78 lm/W |
| Height - Seated (Max) | 0.122"" (3.10mm) |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 75lm (52lm ~ 97lm) |
| Flux @ 85°C, Current - Test | - |
