LCW W5AM-JYKY-4J8K-Z
LED GOLDEN DRAGON NEU WHITE 2SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More

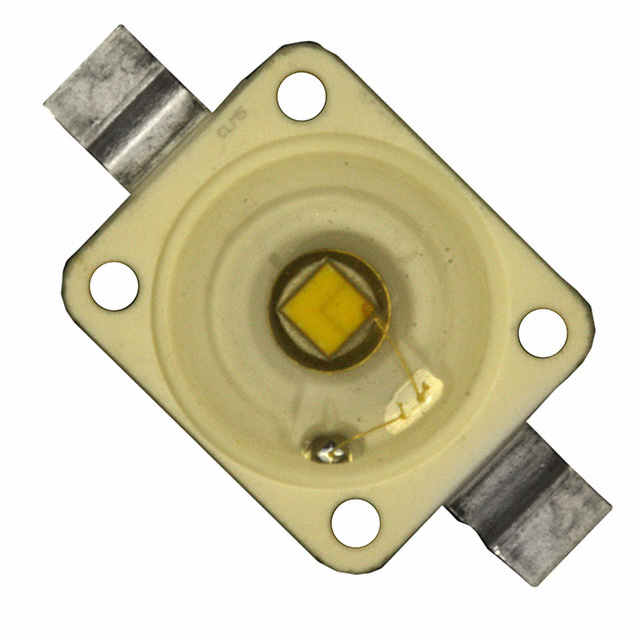

The ams-OSRAM USA INC. LCW-W5AM-JYKY-4J8K-Z is a white, neutral LED from the Golden DRAGON® Plus series, featuring a 4500K CCT and 80 CRI. This 2-SMD, Gull Wing exposed pad component operates at a typical forward voltage of 3.2V and a test current of 350mA, delivering 75 lumens with a luminous efficacy of 67 lm/W. The LED has a maximum current rating of 1A and a wide 170° viewing angle. Its compact dimensions are 0.236" L x 0.236" W (6.00mm x 6.00mm) with a seated height not exceeding 0.122" (3.10mm). Supplied in Tape & Reel packaging, this LED is suitable for various lighting applications across industrial and automotive sectors.
Additional Information
Series: Golden DRAGON® PlusRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Color | White, Neutral |
| Size / Dimension | 0.236"" L x 0.236"" W (6.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 350mA |
| Viewing Angle | 170° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 67 lm/W |
| Height - Seated (Max) | 0.122"" (3.10mm) |
| CCT (K) | 4500K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 75lm (52lm ~ 97lm) |
| Flux @ 85°C, Current - Test | - |
