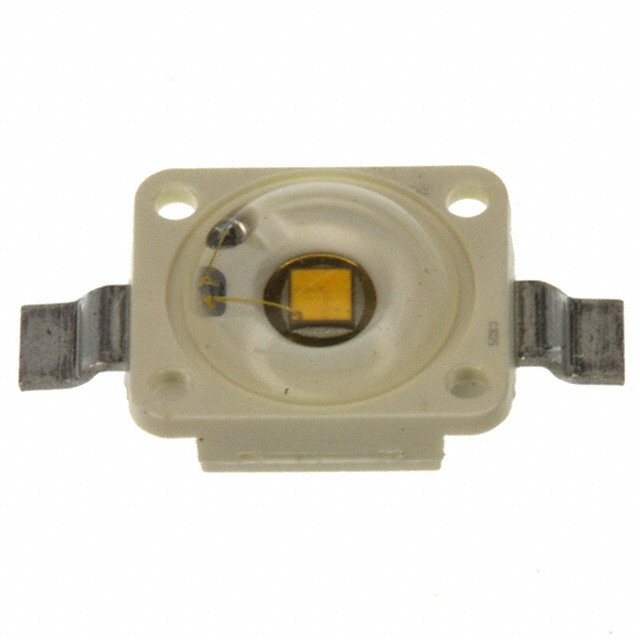

LCW W5AM-JXJY-4R9T-Z
LED GOLDEN DRAGON WARM WHT 2SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. LCW-W5AM-JXJY-4R9T-Z is a warm white LED from the Golden DRAGON® Plus series. This 2-SMD, Gull Wing Exposed Pad component features a typical forward voltage of 3.2V and a test current of 350mA, delivering 53 lumens with a color temperature of 3000K. Its wide viewing angle of 170° and a color rendering index of 80 make it suitable for general illumination applications. The LED is provided on a Tape & Reel (TR) package for automated assembly. This component is commonly utilized in automotive lighting, architectural lighting, and general purpose lighting systems.
Additional Information
Series: Golden DRAGON® PlusRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Color | White, Warm |
| Size / Dimension | 0.236"" L x 0.236"" W (6.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 350mA |
| Viewing Angle | 170° |
| Current - Max | 1A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 47 lm/W |
| Height - Seated (Max) | 0.122"" (3.10mm) |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 53lm (45lm ~ 61lm) |
| Flux @ 85°C, Current - Test | - |
