LCW MVSG.EC-BXCX-4O9Q-1-20-R18-Z
LED MINITOPLEDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More

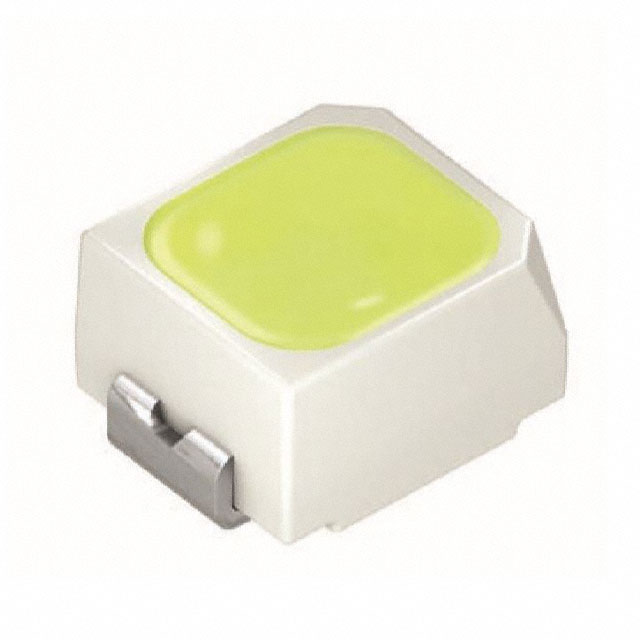

ams-OSRAM USA INC. Mini TOPLED® LCW-MVSG-EC-BXCX-4O9Q-1-20-R18-Z is a white lighting LED. This component features a forward voltage of 3.05V (typical) and operates at a test current of 20mA, with a maximum current rating of 30mA. The Mini TOPLED® series offers a wide viewing angle of 120°. Its compact 2-SMD, J-Lead package measures 2.00mm in length by 1.80mm in width and has a maximum seated height of 1.40mm. The typical Color Rendering Index (CRI) is 82. This LED is suitable for applications in general lighting, automotive, and industrial illumination. It is supplied in bulk packaging.
Additional Information
Series: Mini TOPLED®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 2-SMD, J-Lead |
| Color | White |
| Size / Dimension | 0.079"" L x 0.071"" W (2.00mm x 1.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.05V |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Current - Max | 30mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.055"" (1.40mm) |
| CCT (K) | - |
| CRI (Color Rendering Index) | 82 (Typ) |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | - |
