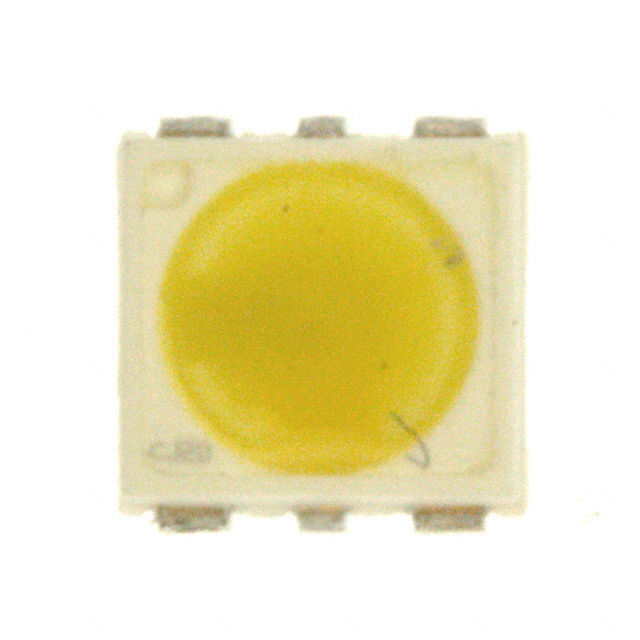

LCW G6SP-CBEB-4L8N-Z
LED TOPLED NEU WHITE 4000K 6SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
ams-OSRAM USA INC. Advanced Power TOPLED® Plus LCW-G6SP-CBEB-4L8N-Z is a neutral white LED with a Correlated Color Temperature (CCT) of 4000K and a CRI of 80. This 6-SMD, J-Lead component is designed for surface mounting and features a typical forward voltage of 3.6V at a test current of 140mA. The device achieves a luminous flux of 21 lumens at 140mA and 25°C, with a luminous efficacy of 42 lm/W. Its dimensions are 3.30mm x 3.00mm with a seated height of 0.083" (2.10mm). The viewing angle is 120°. Maximum forward current is specified at 250mA. This component is suitable for general illumination and backlighting applications. It is supplied in Tape & Reel packaging.
Additional Information
Series: Advanced Power TOPLED® PlusRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | White, Neutral |
| Size / Dimension | 0.130"" L x 0.118"" W (3.30mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Current - Test | 140mA |
| Viewing Angle | 120° |
| Current - Max | 250mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 42 lm/W |
| Height - Seated (Max) | 0.083"" (2.10mm) |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 21lm (12lm ~ 30lm) |
| Flux @ 85°C, Current - Test | - |
