LCW G6CP-DAFA-4L8N-0-140-R18-Z
LED TOPLED NEUT WHT 4000K SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More

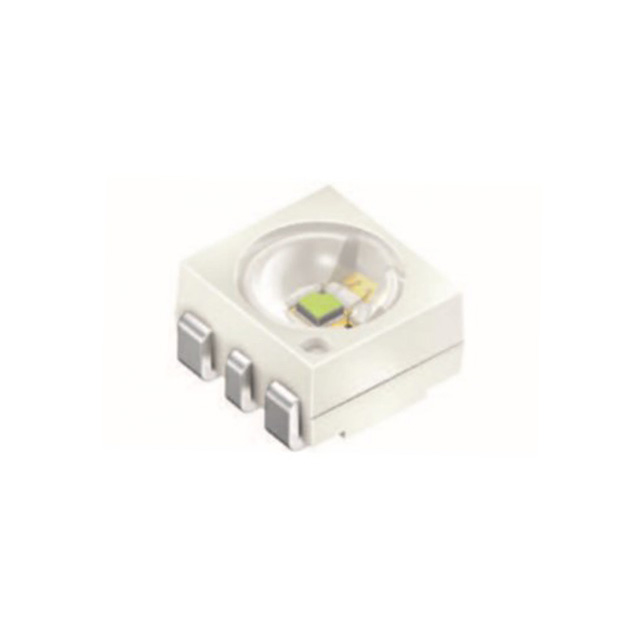

The ams-OSRAM USA INC. LCW-G6CP-DAFA-4L8N-0-140-R18-Z is a surface-mount LED from the Advanced Power TOPLED® series. This component emits neutral white light with a Correlated Color Temperature (CCT) of 4000K and a typical Color Rendering Index (CRI) of 80. It operates with a forward voltage of 3.3V and is specified for a test current of 140mA, delivering a typical luminous flux of 25lm at 25°C. The LED offers a wide 120° viewing angle and a luminous efficacy of 54 lm/W at the test current. The package is a 6-SMD, J-Lead with dimensions of 0.130" L x 0.118" W (3.30mm x 3.00mm) and a maximum seated height of 0.083" (2.10mm). The maximum continuous current is rated at 250mA. This component finds application in general illumination and signage. It is supplied in Tape & Reel packaging.
Additional Information
Series: Advanced Power TOPLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | White, Neutral |
| Size / Dimension | 0.130"" L x 0.118"" W (3.30mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Current - Test | 140mA |
| Viewing Angle | 120° |
| Current - Max | 250mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 54 lm/W |
| Height - Seated (Max) | 0.083"" (2.10mm) |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 25lm (Typ) |
| Flux @ 85°C, Current - Test | - |
