LCW G5GP-FZHY-6S8T-0-100-R18-Z
LED ADVANCED POWER TOPLED SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More

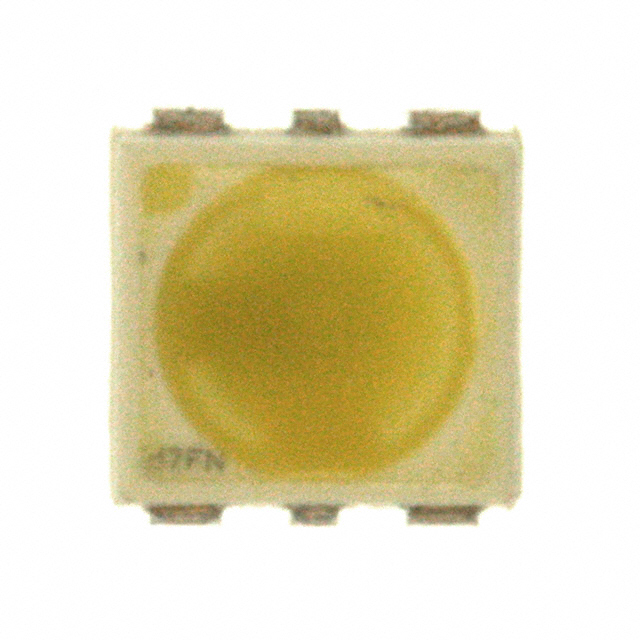

ams-OSRAM USA INC. LCW-G5GP-FZHY-6S8T-0-100-R18-Z is an Advanced Power TOPLED® Plus series white LED. This Surface Mount component features a 4-SMD, Gull Wing package with a typical forward voltage of 3.2V and a maximum forward current of 200mA, operating at a test current of 100mA. The viewing angle is 135°, and the component measures 0.134" L x 0.134" W (3.40mm x 3.40mm) with a maximum seated height of 0.089" (2.27mm). Supplied in Tape & Reel packaging, this LED is suitable for applications in general lighting and automotive illumination where high-performance illumination is required.
Additional Information
Series: Advanced Power TOPLED® PlusRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Color | White |
| Size / Dimension | 0.134"" L x 0.134"" W (3.40mm x 3.40mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 100mA |
| Viewing Angle | 135° |
| Current - Max | 200mA |
| Supplier Device Package | 4-PLCC |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.089"" (2.27mm) |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | - |
