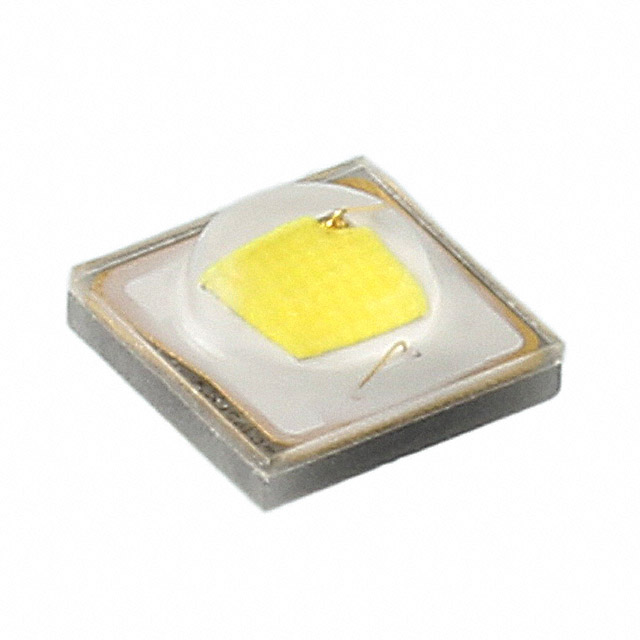

LCW CRDP.EC-KULP-6S7T-L2M1-350-R18-SHR
LED OSLON WHITE SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
ams-OSRAM USA INC. OSLON® SSL 150 White LED, part number LCW-CRDP-EC-KULP-6S7T-L2M1-350-R18-SHR. This SMD component features a forward voltage of 2.95V and is designed for operation at a test current of 350mA, with a maximum current capability of 800mA. The OSLON® SSL 150 series offers a broad 150° viewing angle. The package is a 1212 (3030 Metric) surface mount device, measuring 3.00mm x 3.00mm with a maximum seated height of 1.58mm. This white LED is suitable for applications requiring a Color Rendering Index (CRI) of 80. It is supplied on tape and reel. This component is utilized in automotive lighting, general lighting, and architectural lighting applications.
Additional Information
Series: OSLON® SSL 150RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | White |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.95V |
| Current - Test | 350mA |
| Viewing Angle | 150° |
| Current - Max | 800mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.062"" (1.58mm) |
| CCT (K) | - |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | - |
