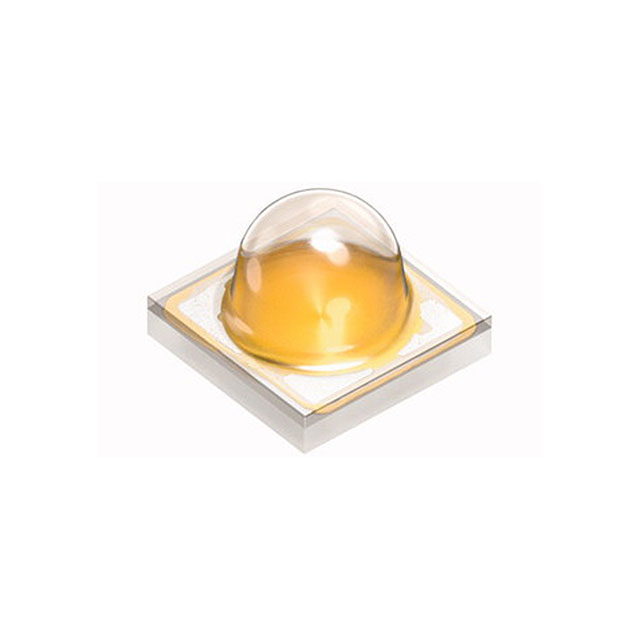

LCW CR7P.PC-LRLT-5H7I-1
LED OSLON COOL WHITE 5000K 2SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
LED Lighting OSLON® SSL 80 White, Cool 5000K 2.95V 350mA 80° 1212 (3030 Metric)
Additional Information
Series: OSLON® SSL 80RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.95V |
| Current - Test | 350mA |
| Viewing Angle | 80° |
| Current - Max | 800mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 142 lm/W |
| Height - Seated (Max) | 0.091"" (2.30mm) |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 70 |
| Flux @ 25°C, Current - Test | 147lm (130lm ~ 164lm) |
| Flux @ 85°C, Current - Test | - |
