KW3 C3LPL3.TK-6TTC-5L35M3-0-1A-S
THE OSLON SUBMOUNT PL IS A VERSAManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
LED Lighting OSLON® Submount PL White 9.8V 1A 120° 2-SMD, No Lead Exposed Pad
Additional Information
Series: OSLON® Submount PLRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Color | White |
| Size / Dimension | 0.181"" L x 0.148"" W (4.60mm x 3.75mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 9.8V |
| Current - Test | 1A |
| Viewing Angle | 120° |
| Current - Max | 1.5A |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 144 lm/W |
| Height - Seated (Max) | 0.034"" (0.87mm) |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Flux @ 25°C, Current - Test | 1413lm (1230lm ~ 1595lm) |
| Flux @ 85°C, Current - Test | - |
| Grade | Automotive |
| Qualification | AEC-Q102 |
Request a Quote
Clients Also Buy

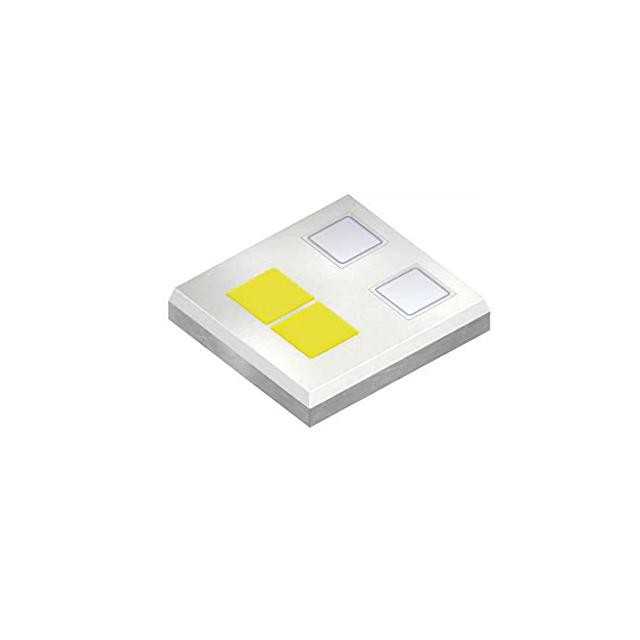

KW2 C2LPL3.TK-6DT2-5L16M1-0-1A-S
