KW DPLS31.SB-6H6J-E5P7-QV-1-120-S
LED SYNIOS WHITE SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More

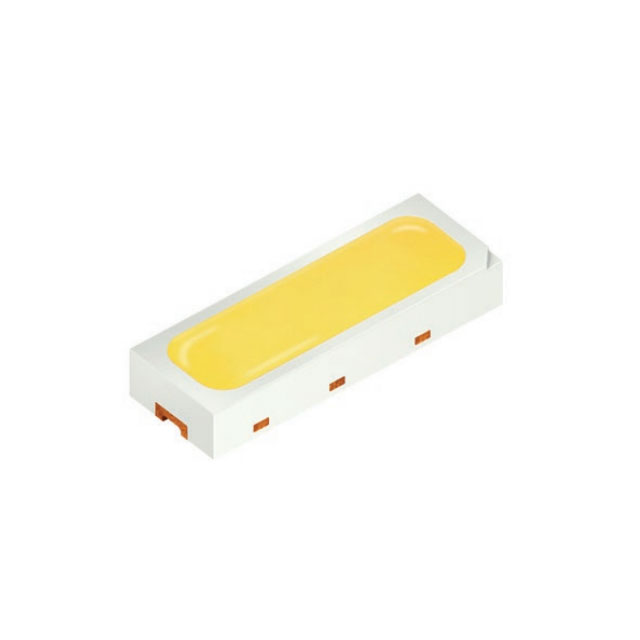

ams-OSRAM USA INC. SYNIOS® E4014 KW-DPLS31-SB-6H6J-E5P7-QV-1-120-S is a white SMD LED designed for high-performance lighting applications. This component operates with a typical forward voltage of 3.15V and a test current of 120mA, delivering 44 lumens and an efficacy of 116 lm/W. It offers a broad 120° viewing angle and features a compact 1606 (4014 Metric) package measuring 4.00mm x 1.40mm with a maximum seated height of 0.75mm. The maximum continuous current is rated at 180mA. This component is supplied in Tape & Reel packaging and is suitable for automotive interior lighting, general illumination, and industrial control panel applications.
Additional Information
Series: SYNIOS® E4014RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1606 (4014 Metric) |
| Color | White |
| Size / Dimension | 0.157"" L x 0.055"" W (4.00mm x 1.40mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.15V |
| Current - Test | 120mA |
| Viewing Angle | 120° |
| Current - Max | 180mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 116 lm/W |
| Height - Seated (Max) | 0.030"" (0.75mm) |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Flux @ 25°C, Current - Test | 44lm (32lm ~ 56lm) |
| Flux @ 85°C, Current - Test | - |
