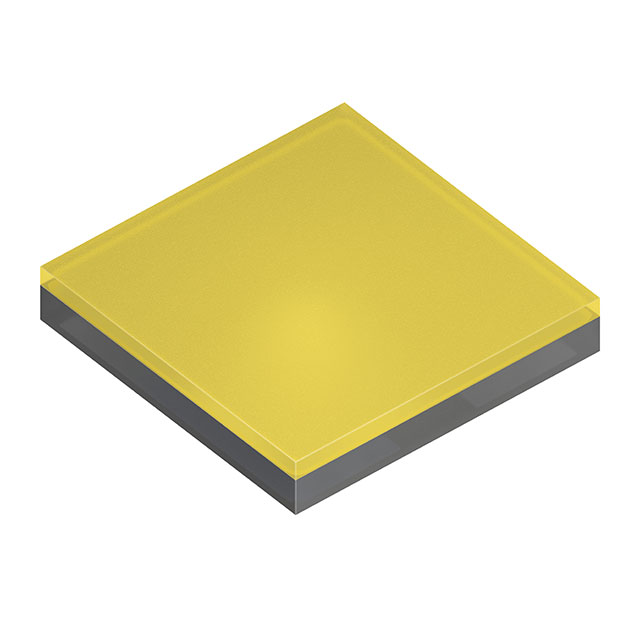

GW VJLPE1.EM-KSLT-A737-1-350-R18
LED OSLON WARM WHT 3000K 0404Manufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
ams-OSRAM USA INC. OSLON® Pure 1010 GW-VJLPE1-EM-KSLT-A737-1-350-R18. This surface mount LED features a warm white color temperature of 3000K with a CRI of 80. Designed for efficient operation, it has a typical forward voltage of 2.8V and a test current of 350mA, delivering 98 lumens. It supports a maximum continuous current of 700mA. The component is housed in an 0404 (1010 Metric) package with dimensions of 1.08mm x 1.08mm and a seated height of 0.22mm. Its wide 120° viewing angle makes it suitable for general illumination applications, including automotive interior lighting and architectural lighting. The device is supplied on tape and reel.
Additional Information
Series: OSLON® Pure 1010RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0404 (1010 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.042"" L x 0.042"" W (1.08mm x 1.08mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.8V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 700mA |
| Supplier Device Package | 0404 |
| Lumens/Watt @ Current - Test | 100 lm/W |
| Height - Seated (Max) | 0.009"" (0.22mm) |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 98lm (85lm ~ 110lm) |
