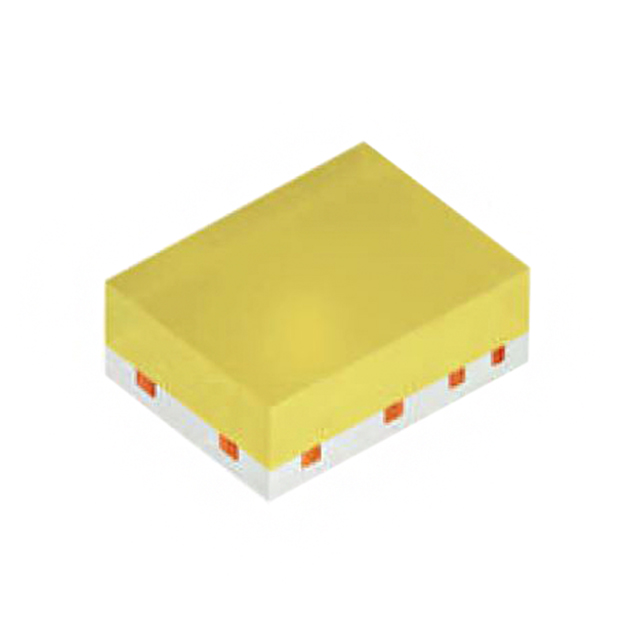

GW SBLMA2.EM-HPHR-A131-L1M1-65-R18-XX
LED DURIS S2 COOL WHT 6500K SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. DURIS® S 2 series GW-SBLMA2-EM-HPHR-A131-L1M1-65-R18-XX is a cool white surface mount LED with a Correlated Color Temperature (CCT) of 6500K and a Color Rendering Index (CRI) of 80. This component offers a typical forward voltage of 2.9V and operates at a test current of 65mA, achieving a luminous efficacy of 170 lm/W. The LED features a wide 150° viewing angle and delivers 32 lumens at 25°C with the specified test current. The package is an 0806 (2016 Metric) SMD, measuring 2.05mm in length and 1.55mm in width, with a seated height of 0.85mm. It is supplied on a tape and reel for automated assembly. This component is suitable for general illumination and automotive lighting applications.
Additional Information
Series: DURIS® S 2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0806 (2016 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.081"" L x 0.061"" W (2.05mm x 1.55mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Current - Test | 65mA |
| Viewing Angle | 150° |
| Current - Max | 150mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 170 lm/W |
| Height - Seated (Max) | 0.033"" (0.85mm) |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 32lm (28lm ~ 36lm) |
| Flux @ 85°C, Current - Test | - |
