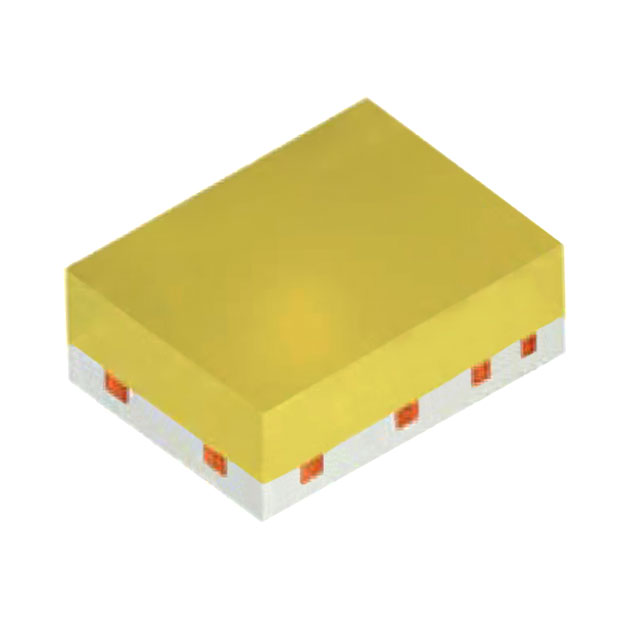

GW SBLMA2.EM-GUHQ-XX52-1-65-R18
LED DURIS S2 COOL WHT 5700K SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. DURIS® S 2 series GW-SBLMA2-EM-GUHQ-XX52-1-65-R18 is a cool white SMD LED with a Correlated Color Temperature (CCT) of 5700K. This component features a typical forward voltage (Vf) of 2.9V and operates with a test current of 65mA, delivering 30 lumens of luminous flux and an efficacy of 159 lm/W. The LED offers a wide viewing angle of 150° and a Color Rendering Index (CRI) of 80. It is housed in an 0806 (2016 Metric) package with dimensions of 2.05mm L x 1.55mm W and a maximum seated height of 0.85mm. The component is supplied in a Tape & Reel (TR) package. This LED is suitable for various lighting applications, including general illumination, task lighting, and architectural lighting.
Additional Information
Series: DURIS® S 2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0806 (2016 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.081"" L x 0.061"" W (2.05mm x 1.55mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Current - Test | 65mA |
| Viewing Angle | 150° |
| Current - Max | 150mA |
| Supplier Device Package | 2016 |
| Lumens/Watt @ Current - Test | 159 lm/W |
| Height - Seated (Max) | 0.033"" (0.85mm) |
| CCT (K) | 5700K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 30lm (26lm ~ 33lm) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

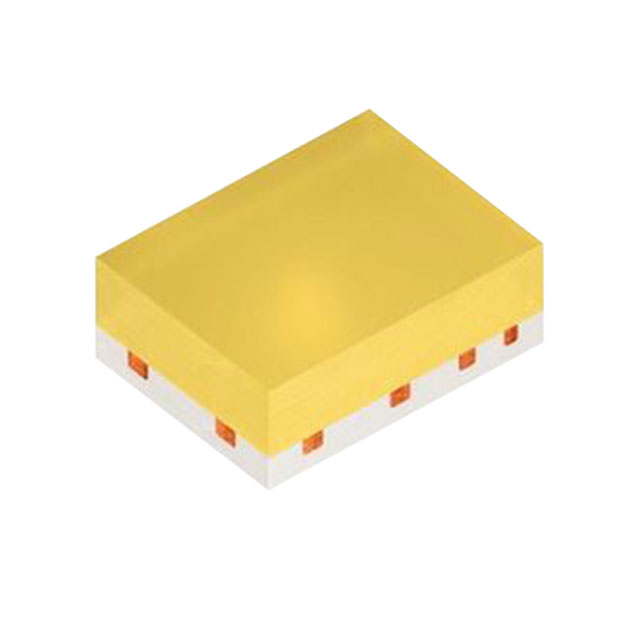

GW SBLMA1.EM-GTHP-A838-L1N2-65-R18
