GW QSLR31.EM-LWLY-XX55-1-150-R18
LED OSCONIQ NEUT WHT 4000K SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More

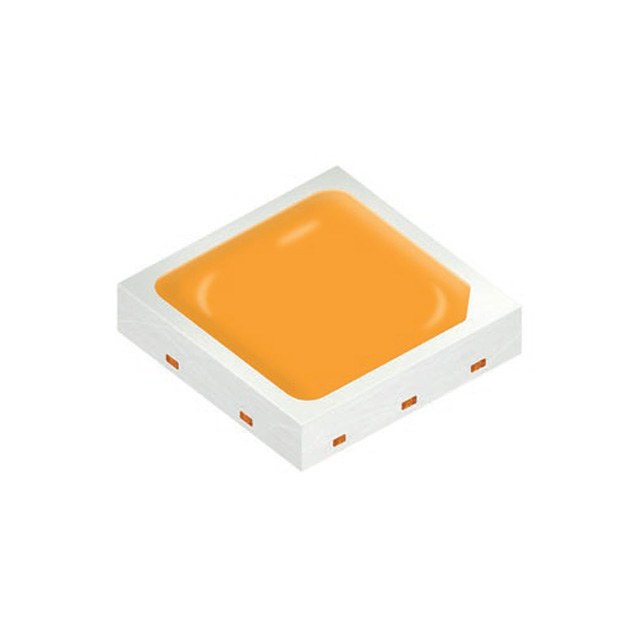

The ams-OSRAM USA INC. OSCONIQ® S 3030 GW-QSLR31-EM-LWLY-XX55-1-150-R18 is a neutral white LED designed for surface mount applications. This component features a 120° viewing angle and a typical forward voltage of 6.15V. Operating at a test current of 150mA, it delivers a luminous flux of 143 lumens with a lumens/watt rating of 149 lm/W. The LED boasts a Color Rendering Index (CRI) of 80 and a correlated color temperature (CCT) of 4000K. Its compact 1212 (3030 Metric) package measures 3.00mm x 3.00mm with a maximum seated height of 0.75mm. Supplied on tape and reel, this LED is suitable for general illumination and demanding lighting solutions across various industries, including automotive and architectural lighting.
Additional Information
Series: OSCONIQ® S 3030RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | White, Neutral |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 6.15V |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Current - Max | 200mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 149 lm/W |
| Height - Seated (Max) | 0.030"" (0.75mm) |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 143lm (135lm ~ 150lm) |
| Flux @ 85°C, Current - Test | - |
