GW QSLMS2.EM-H5H8-XX37-1-65-R18
LED OSCONIQ WARM WHT 3000K 1212Manufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More

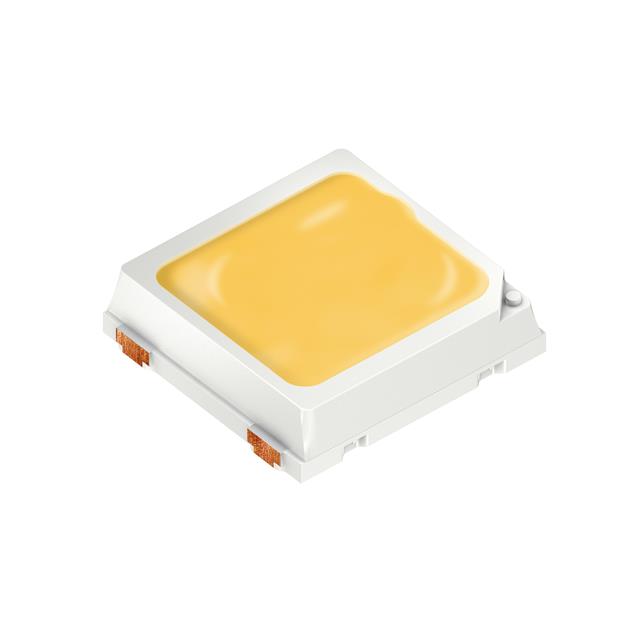

The ams-OSRAM USA INC. OSCONIQ® S 3030 series LED, part number GW-QSLMS2-EM-H5H8-XX37-1-65-R18, offers a warm white illumination at 3000K CCT with a typical forward voltage of 2.7V. This surface-mount device, in a 1213 (3032 Metric) package, delivers 37.5 lumens at a test current of 65mA with a wide 120° viewing angle. The component boasts a high luminous efficacy of 214 lm/W at the specified test current and a CRI of 80. Designed for demanding applications, this LED is suitable for general illumination, architectural lighting, and automotive interior lighting solutions. It is supplied on tape and reel for efficient automated assembly.
Additional Information
Series: OSCONIQ® S 3030RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1213 (3032 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.118"" L x 0.126"" W (3.00mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.7V |
| Current - Test | 65mA |
| Viewing Angle | 120° |
| Current - Max | 200mA |
| Supplier Device Package | 1212 |
| Lumens/Watt @ Current - Test | 214 lm/W |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 37.5lm (34.5lm ~ 40.5lm) |
| Flux @ 85°C, Current - Test | - |
