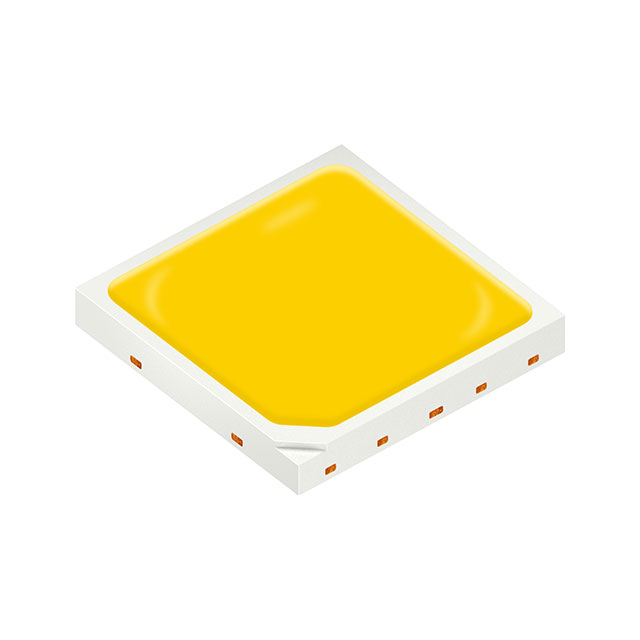

GW Q9LR32.PM-M4M5-XX55-ZB-180-R18-LM
LED OSCONIQ NEUT WHT 4000K 2020Manufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. GW-Q9LR32-PM-M4M5-XX55-ZB-180-R18-LM is a white LED from the OSCONIQ® S 5050 series. This component features a neutral white color temperature of 4000K with a typical forward voltage of 5.52V and a test current of 180mA, delivering 220 lumens. It offers a high luminous efficacy of 221 lm/W at the test current. The LED has a wide viewing angle of 120° and is housed in a 2020 (5050 Metric) package, measuring 5.00mm x 5.00mm with a seated height of 0.80mm. This surface mount device is suitable for applications requiring efficient and broad illumination, commonly found in general lighting, architectural lighting, and signage. The component is supplied in bulk packaging.
Additional Information
Series: OSCONIQ® S 5050RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 2020 (5050 Metric) |
| Color | White, Neutral |
| Size / Dimension | 0.197"" L x 0.197"" W (5.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 5.52V |
| Current - Test | 180mA |
| Viewing Angle | 120° |
| Current - Max | 1.05A |
| Supplier Device Package | 2020 |
| Lumens/Watt @ Current - Test | 221 lm/W |
| Height - Seated (Max) | 0.031"" (0.80mm) |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 70 |
| Flux @ 25°C, Current - Test | 220lm (210lm ~ 230lm) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

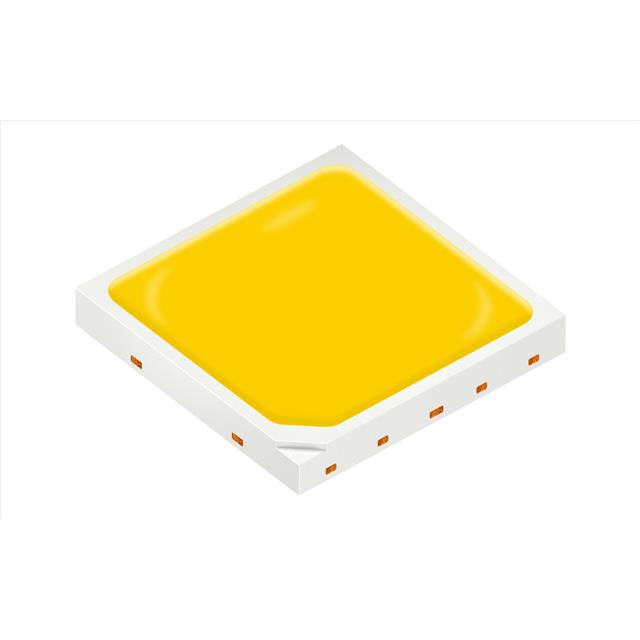

GW Q9LR31.EM-L9M8-XX58-1-45-R18
