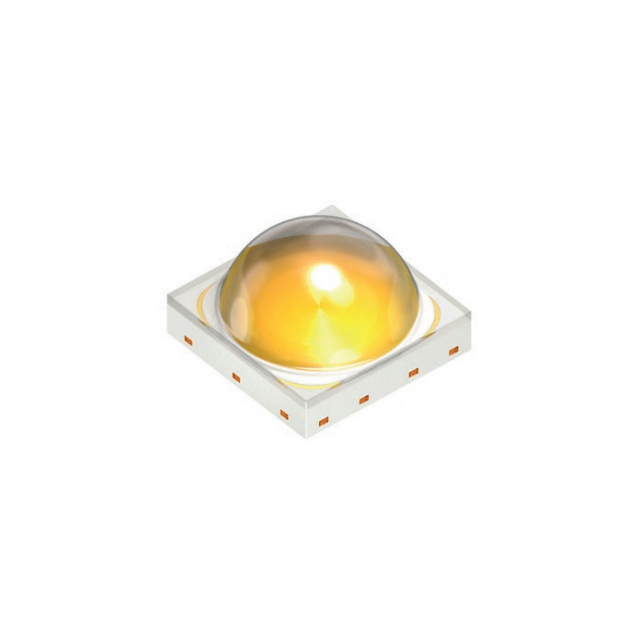

GW PUSTA1.PM-PAPC-XX52-1-1050-R18
LED OSCONIQ COOL WHT 5700K 3SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
LED Lighting OSCONIQ® P 3737 White, Cool 5700K 2.75V 1.05A 120° 1515 (3838 Metric)
Additional Information
Series: OSCONIQ® P 3737RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1515 (3838 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.146"" L x 0.146"" W (3.70mm x 3.70mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.75V |
| Current - Test | 1.05A |
| Viewing Angle | 120° |
| Current - Max | 3A |
| Supplier Device Package | 3-SMD |
| Lumens/Watt @ Current - Test | 177 lm/W |
| Height - Seated (Max) | 0.089"" (2.25mm) |
| CCT (K) | 5700K |
| CRI (Color Rendering Index) | 70 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 510lm (480lm ~ 540lm) |
Request a Quote
Clients Also Buy

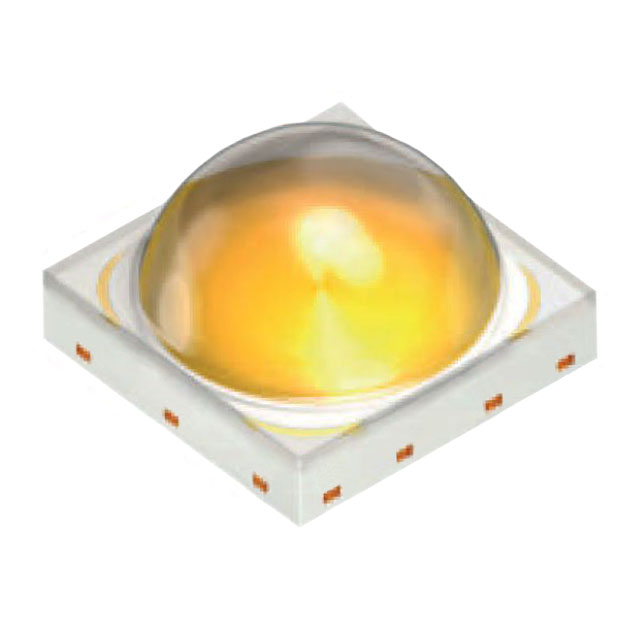

GW PUSRA1.PM-N3N5-XX52-1-700-R18
