GW PUSTA1.PM-NCND-XX57-1-1050-R18
LED DURIS P9 WARM WHT 3000K 3SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More

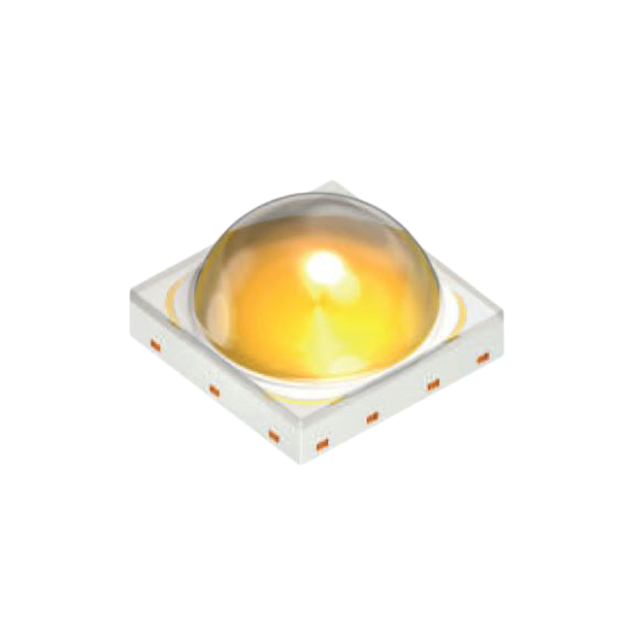

The ams-OSRAM USA INC. DURIS® P 9 series GW-PUSTA1-PM-NCND-XX57-1-1050-R18 is a surface-mount LED designed for warm white illumination. This component features a Color Temperature of 3000K and a typical forward voltage of 2.75V. It delivers a luminous flux of 440lm at a test current of 1.05A, achieving a luminous efficacy of 152 lm/W under these conditions. The LED has a wide viewing angle of 120° and a maximum forward current capability of 3A. Its compact 3-SMD, No Lead package measures 0.146" x 0.146" (3.70mm x 3.70mm) with a maximum seated height of 0.089" (2.25mm). Packaged on tape and reel, this LED is suitable for applications in general lighting and automotive lighting.
Additional Information
Series: DURIS® P 9RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Color | White, Warm |
| Size / Dimension | 0.146"" L x 0.146"" W (3.70mm x 3.70mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.75V |
| Current - Test | 1.05A |
| Viewing Angle | 120° |
| Current - Max | 3A |
| Supplier Device Package | 3-SMD |
| Lumens/Watt @ Current - Test | 152 lm/W |
| Height - Seated (Max) | 0.089"" (2.25mm) |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 70 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 440lm (420lm ~ 460lm) |
