GW PUSRA1.EM-M7N2-XX58-1-700-R18
LED OSCONIQ WARM WHT 2700K 3SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More

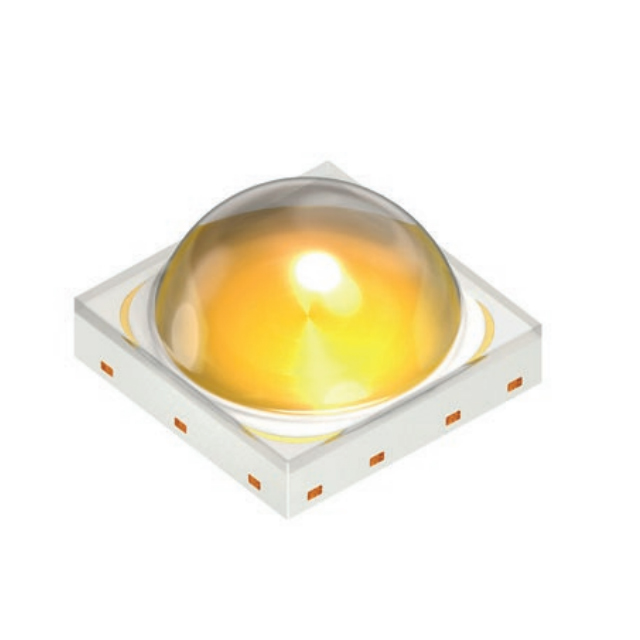

The ams-OSRAM USA INC. GW-PUSRA1-EM-M7N2-XX58-1-700-R18 is a high-performance LED from the OSCONIQ® P 3737 series. This warm white component features a Correlated Color Temperature (CCT) of 2700K and a Color Rendering Index (CRI) of 80, delivering excellent color fidelity. Engineered for demanding applications, it operates at a typical forward voltage of 2.8V and a test current of 700mA, producing 270 lumens with a luminous efficacy of 138 lm/W. The LED supports a maximum current of 1.5A. Its 1515 (3838 Metric) package measures 0.146" L x 0.146" W (3.70mm x 3.70mm) with a maximum seated height of 0.089" (2.25mm), suitable for surface mounting. The viewing angle is a broad 120°. This component is commonly utilized in general lighting, architectural lighting, and automotive lighting sectors. It is supplied on a Tape & Reel (TR) for efficient automated assembly.
Additional Information
Series: OSCONIQ® P 3737RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1515 (3838 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.146"" L x 0.146"" W (3.70mm x 3.70mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.8V |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Current - Max | 1.5A |
| Supplier Device Package | 3-SMD |
| Lumens/Watt @ Current - Test | 138 lm/W |
| Height - Seated (Max) | 0.089"" (2.25mm) |
| CCT (K) | 2700K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 270lm (240lm ~ 300lm) |
