GW P9LR31.EM-PQPR-XX57-1-150-R18
LED DURIS S8 WARM WHT 3000K SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More

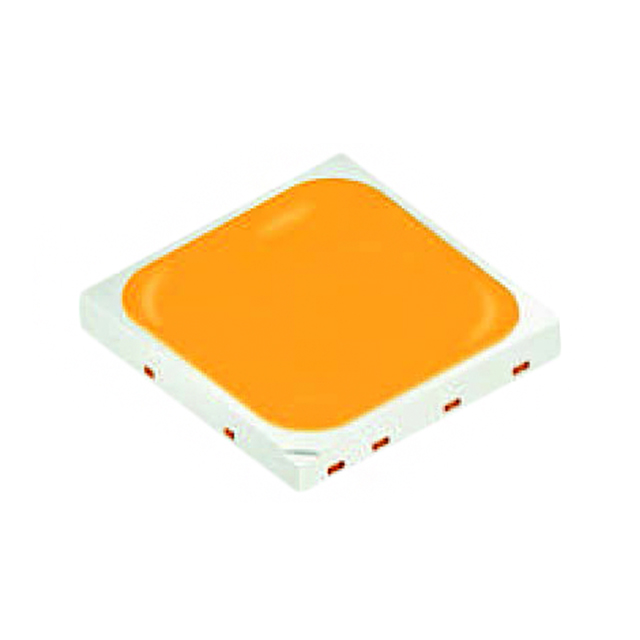

The ams-OSRAM USA INC. GW-P9LR31-EM-PQPR-XX57-1-150-R18 is a DURIS® S 8 series white LED designed for demanding illumination applications. This Surface Mount device, housed in a 2020 (5050 Metric) package, delivers a warm white light with a Correlated Color Temperature (CCT) of 3000K and a Color Rendering Index (CRI) of 80. It operates at a typical forward voltage of 24.8V and a test current of 150mA, achieving a luminous flux of 524 lumens and an efficacy of 141 lm/W. The component features a wide 120° viewing angle and a maximum forward current of 200mA. Its compact dimensions of 5.00mm x 5.00mm and a seated height of 0.80mm make it suitable for space-constrained designs. This LED is commonly utilized in general lighting, architectural lighting, and automotive interior lighting systems. It is supplied on Tape & Reel.
Additional Information
Series: DURIS® S 8RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2020 (5050 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.197"" L x 0.197"" W (5.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 24.8V |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Current - Max | 200mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 141 lm/W |
| Height - Seated (Max) | 0.031"" (0.80mm) |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 524lm (484lm ~ 563lm) |
| Flux @ 85°C, Current - Test | - |
