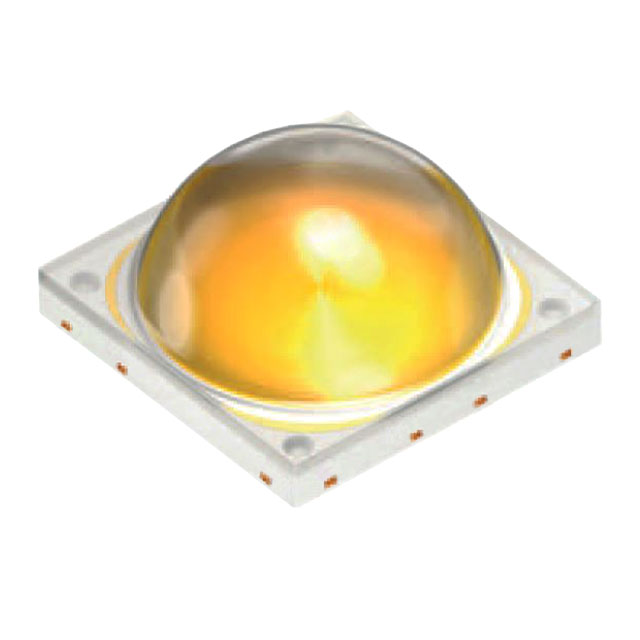

GW P7STA1.EM-VFVG-40S5-1-700-R33
LED OSCONIQ NEUT WHT 4000K SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. OSCONIQ® P 7070 series LED, part number GW-P7STA1-EM-VFVG-40S5-1-700-R33, is a high-flux, neutral white LED designed for demanding illumination applications. This SMD component features a Color Correlated Temperature (CCT) of 4000K and a Color Rendering Index (CRI) of 80, providing excellent color fidelity. Operating at a typical forward voltage of 11.5V, it achieves a luminous flux of 1080 lumens at a test current of 700mA, with a high efficacy of 134 lm/W. The device has a maximum forward current rating of 1.05A and a wide 120° viewing angle. Its robust 2828 (7070 Metric) package measures 7.00mm x 7.00mm with a maximum seated height of 3.53mm, suitable for surface mounting. This LED is supplied on tape and reel, making it ideal for automated assembly processes in automotive lighting, architectural lighting, and general illumination sectors.
Additional Information
Series: OSCONIQ® P 7070RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2828 (7070 Metric) |
| Color | White, Neutral |
| Size / Dimension | 0.276"" L x 0.276"" W (7.00mm x 7.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 11.5V |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Current - Max | 1.05A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 134 lm/W |
| Height - Seated (Max) | 0.139"" (3.53mm) |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 1080lm (1040lm ~ 1120lm) |
