GW JSLPS1.EM-LPLR-A434-1
LED DURIS S5E NEUT WHT 4500K SMDManufacturer: ams-OSRAM USA INC.
Categories: LED White Lighting
Quality Control: Learn More
The ams-OSRAM USA INC. DURIS® S 5E GW-JSLPS1-EM-LPLR-A434-1 is a neutral white LED with a Correlated Color Temperature (CCT) of 4500K. Designed for surface mount applications, this component is housed in a 1212 (3030 Metric) package, measuring 3.00mm x 2.90mm with a seated height of 0.70mm. It operates with a typical forward voltage of 6.35V and a test current of 150mA, capable of handling a maximum current of 200mA. At the test current, it delivers a luminous flux of 126 lumens with a Color Rendering Index (CRI) of 80, achieving a luminous efficacy of 132 lm/W. The viewing angle is 120°. This LED is suitable for general lighting applications and is supplied in a Tape & Reel (TR) package.
Additional Information
Series: DURIS® S 5ERoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | White, Neutral |
| Size / Dimension | 0.118"" L x 0.114"" W (3.00mm x 2.90mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 6.35V |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Current - Max | 200mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 132 lm/W |
| Height - Seated (Max) | 0.028"" (0.70mm) |
| CCT (K) | 4500K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 126lm (112lm ~ 140lm) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

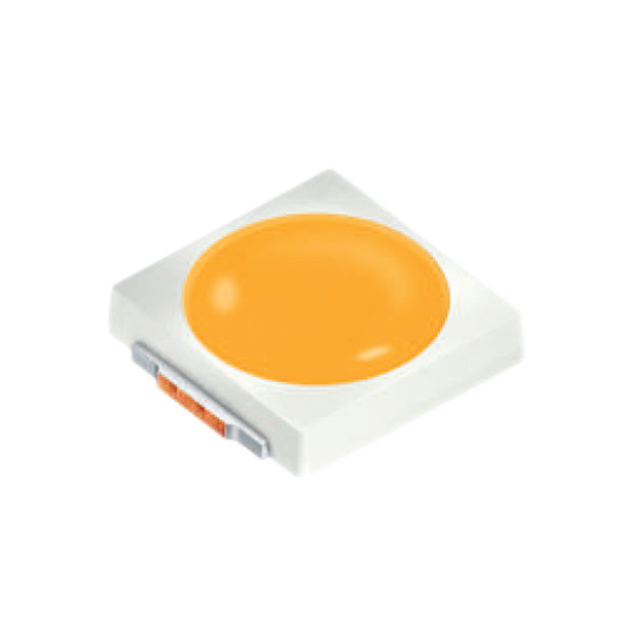

GW JSLPS1.EM-KULQ-A838-1-150-R18
LED DURIS S5E WARM WHT 2700K SMD

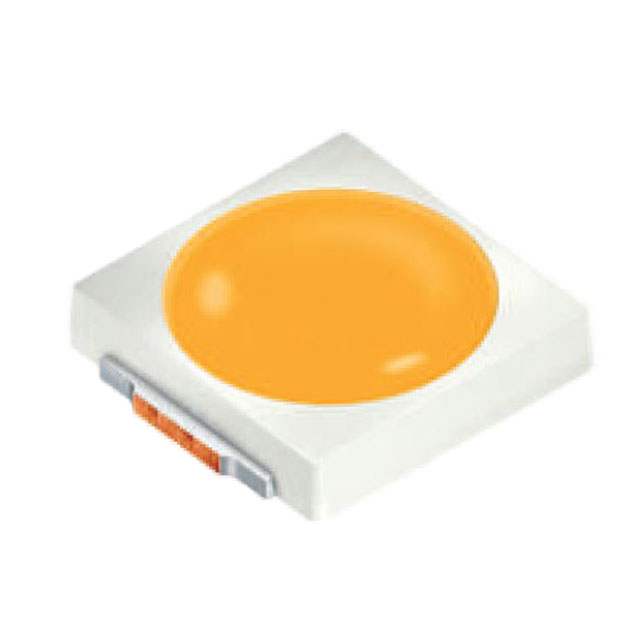

GW JSLPS1.EM-KULQ-XX58-1-150-R18
